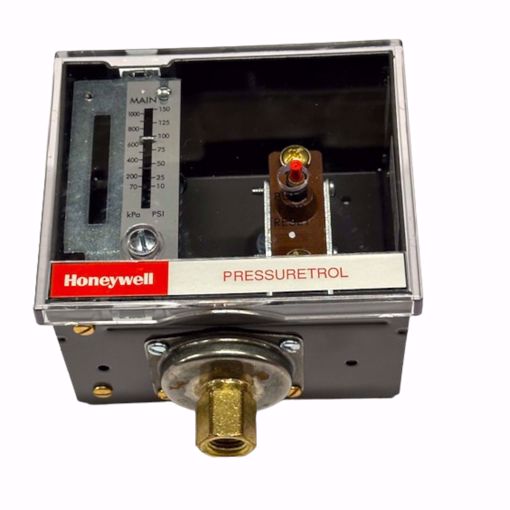

MERCURY FREE PRESSURETROLBREAKS ON PRESSURE RISE

Manufacturer: Honeywell

- Maximum Operating Pressure 150 PSI - Operating Range 10 PSI to 150 PSI - SPST break on pressure rise - Maximum Pressure 225 PSI - Mount using 1/4 in. NPT female fitting on diaphragm assembly or surface mount through back of case. Features - L4079B has one spst switch. - MICRO SWITCH® snap-acting switches are visible through transparent cover. - Switches open automatically, but must be reset manually. - Trip-free reset mechanisms do not permit the limiting role of the PressureTrol Control to be defeated by jamming the reset lever. - Control does not need leveling - The L4079 is unaffected by moderate vibration. The L4079A,B, and W PressureTrol Limit Controls are high pressure limit switches which break electrical circuits when pressure rises to a preset value. The L4079A and B can be used with steam, air, noncombustible gases, and fluids noncorrosive to the sensing element

SKU: HONEYWELL:L4079B1041

Product Availability: 2

$255.54

This product must be purchased in increments of 1

Qty:

i h

- Maximum Operating Pressure 150 PSI
- Operating Range 10 PSI to 150 PSI
- SPST break on pressure rise
- Maximum Pressure 225 PSI
- Mount using 1/4 in. NPT female fitting on diaphragm assembly or surface mount through back of case.

Features
- L4079B has one spst switch.
- MICRO SWITCH snap-acting switches are visible through transparent cover.
- Switches open automatically, but must be reset manually.
- Trip-free reset mechanisms do not permit the limiting role of the PressureTrol Control to be defeated by jamming the reset lever.
- Control does not need leveling
- The L4079 is unaffected by moderate vibration.

The L4079A,B, and W PressureTrol Limit Controls are high pressure limit switches which break electrical circuits when pressure rises to a preset value.

The L4079A and B can be used with steam, air, noncombustible gases, and fluids noncorrosive to the sensing element

Products specifications

Manufacturer	Honeywell
