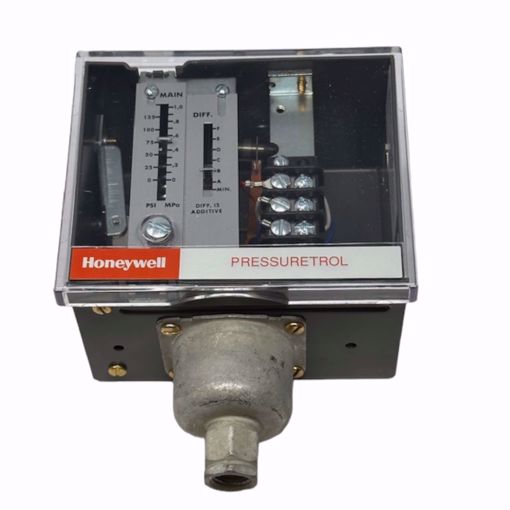

HONEYWELL PROPORTIONING PRESSURETROL 5-150PSI

- Pressure Range: 50 to 150 psi - Max Pressure Differential (PSI): 23 - Pressure Differential: 5 psi to 23 psi - Max Pressure (PSI): 150 - Temperature Range : 32°F to 150°F - Min Pressure Differential (PSI): 5 FEATURES • Models available for pressure systems up to 300 psi (2068 kPa). • May be used with steam, air, noncombustible gases, or other fluids noncorrosive to brass or phos-bronze (300 psi model) bellows. • When used with steam boilers, a steam trap (siphon loop) is recommended. • Wiper on controller potentiometer moves in response to pressure changes. • L91B,D models have adjustable proportioning (throttling) range to allow selection of desired pressure control range. • Adjustments made with screws on case top. • Large, easily-read scale plates in both U.S. customary (oz/sq. in., psi, or in. Hg) and metric (kPa, MPa, or mm Hg) units. • Steel case with clear plastic cover to observe pressure settings and potentiometer action. • Fitting with 1/4 -18 NPT threads allows rapid installation. • Surface mount with screws through knockout holes in case back. L91 Proportioning Pressuretrol Controllers are Series 90 Modulating Pressure Controllers that provide direct control of modulating motors or valves used on automatic burners or steam heating systems.
