HONEYWELL DAMPER ACTUATOR 2 POS 20 LB-IN TORQUE

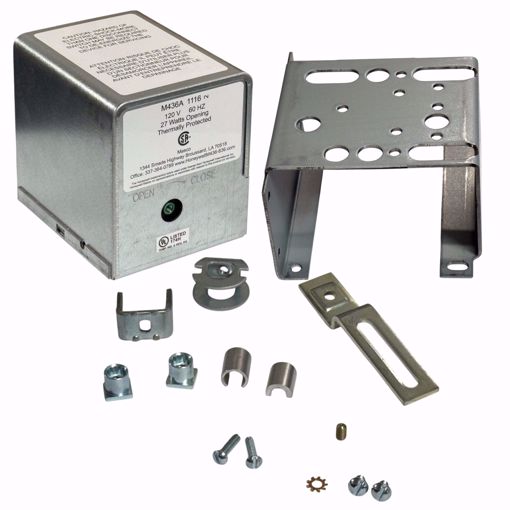

M436A1116 HONEYWELL DAMPER ACTUATOR 2 POS 20 LB-IN TORQUE - 120V - 60Hz - 27 Watts Opening - 1/8" NPt Air Connections - Actuator Type Two Position - Torque 20 lb-in - Temp Range 32 to 125 F - Fail Safe Mode Spring Return - Mounting Foot - 30 lb-in Break Away Torque - Opening Time 30 Sec - Close time 25 Sec - Damper Blade Area 13 SQ Ft Contains Kit Honeywell 7640JP Kit Includes - 2 Bushings - 1 Adapter Shafter - 1 Lever - 2 Clamps, - 1 Coupling - 4 Screws - 1 Set screw and washer Features FEATURES • Motors provide two-position zone control. • Used to operate outdoor air dampers for combustion or makeup air, changeover dampers for heating and cooling systems, minimum position dampers for ventilation and similar applications. • Damper motors have an internal spdt switch for controlling auxiliary equipment, additional motors, or to provide a burner interlock switch. • M436 Damper Motors require 120 or 240 Vac, 60 Hz power; M836 Damper Motors require 24 Vac, 60 Hz power. • All models are supplied with a case and cover. • Spring returns motor to start position in event of power interruption or failure. • Hexagonal output shafts on both ends of motor with rotational direction stamped on motor case. • M436A and M836A equipped with thermal breaker for overload protection during lifting stroke or when motor stalls. • M836A Damper Motor with 128499 Bracket directly replaces M87A Damper Motor. M436A/M836A,B Damper Motors are spring return (SR) motors used for residential and light commercial applications in Series 40 and Series 80 circuits.
