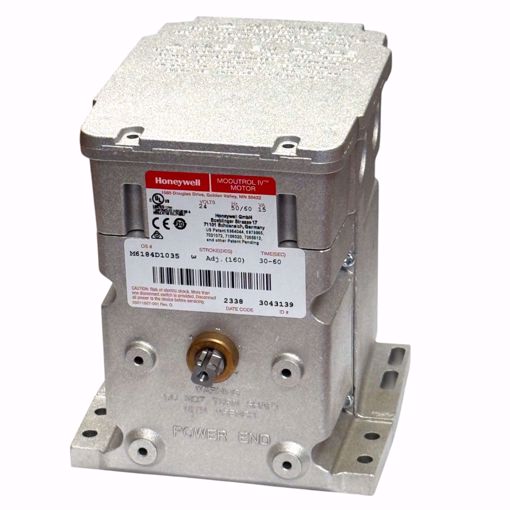

M6184D1035 HONEYWELL 150 LB-IN NON-SPRING RETURN FLOATING CONTROL 24V MOD MOTOR

Manufacturer: Honeywell

M6184D1035 HONEYWELL 150 LB-IN NON-SPRING RETURN FLOATING CONTROL 24V MOD MOTOR - 24V - 50/60Hz - 15VA - Temperature Range: -40 to 150F - 150 lb-in Torque - Mounting Foot - Control Signal Floating - Fail Safe Mode Non-Spring Return Features • Integral junction box provides NEMA 3 weather protection. • Integral spring return returns motor to normal position when power is interrupted. • Motor and circuitry operate from 24 Vac. Models available with factory installed transformer, or a field added internal transformer. • Quick-connect terminals are standard—screw terminal adapter is available. • Motors have field adjustable stroke (90° to 160°). • Die-cast aluminum housing. • Nominal timing standard of 30 seconds (90° stroke), and 60 seconds (160° stroke). • Spring return motors can operate valve linkages from power end or auxiliary end shafts for normally closed or normally open valve applications. • All models have dual shafts (slotted and tapped on both ends). • All models have auxiliary switch cams. • Fixed torque throughout the entire voltage range. • Motors are designed for either normally open or normally closed valves and dampers. The Series 61 and Series 62 Modutrol IV Motors are three-wire spring return and non-spring return floating control motors. Use these motors with controllers that provide a switched spdt or floating output to operate dampers or valves. The Series 62 motors have an internal electrically isolated feedback potentiometer that provides indication of the motor shaft position and can be used for slaving Series 90 Motors or rebalancing an external control circuit.

SKU: HONEYWELL:M6184D1035

Product Availability: 1

$1,367.61

This product must be purchased in increments of 1

Qty:

i h

M6184D1035 HONEYWELL 150 LB-IN NON-SPRING RETURN FLOATING CONTROL 24V MOD MOTOR

- 24V
- 50/60Hz
- 15VA
- Temperature Range: -40 to 150F
- 150 lb-in Torque
- Mounting Foot
- Control Signal Floating
- Fail Safe Mode Non-Spring Return

Features
• Integral junction box provides NEMA 3 weather protection.
• Integral spring return returns motor to normal position when power is interrupted.
• Motor and circuitry operate from 24 Vac. Models available with factory installed transformer, or a field
added internal transformer.
• Quick-connect terminals are standard—screw terminal adapter is available.
• Motors have field adjustable stroke (90° to 160°).
• Die-cast aluminum housing.
• Nominal timing standard of 30 seconds (90° stroke), and 60 seconds (160° stroke).
• Spring return motors can operate valve linkages from power end or auxiliary end shafts for normally closed
or normally open valve applications.
• All models have dual shafts (slotted and tapped on both ends).
• All models have auxiliary switch cams.
• Fixed torque throughout the entire voltage range.
• Motors are designed for either normally open or normally closed valves and dampers.

The Series 61 and Series 62 Modutrol IV Motors are three-wire spring return and non-spring return floating control motors. Use these motors with controllers that provide a switched spdt or floating output to operate dampers or valves.

The Series 62 motors have an internal electrically isolated feedback potentiometer that provides indication of the motor shaft position and can be used for slaving Series 90 Motors or rebalancing an external control circuit.

Products specifications

Manufacturer	Honeywell
