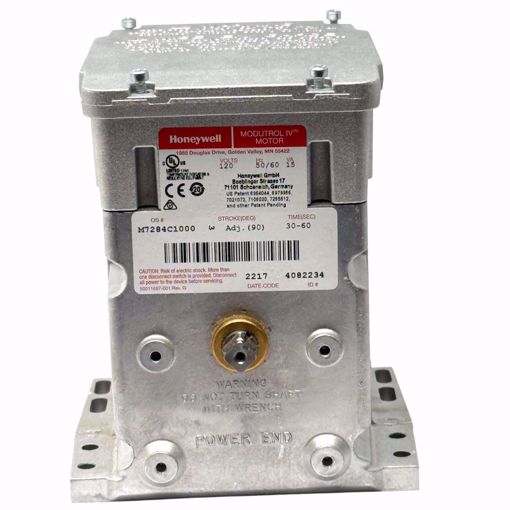

HONEYWELL M7284C1000 MODUTROL MOTOR 120VAC NON SPRING RETURN

Manufacturer: Honeywell

M7284C1000 HONEYWELL M7284C1000 MODUTROL MOTOR 120VAC NON SPRING RETURN - 120V - Stroke: Adjustable 90 to 160 degrees, asymmetrical - 50/60Hz - Temperature Range: -40 to 150 F - Control Signal: Modulating, 4-20 mA - Mounting: foot-mounted - Torque 150 in -lb - 15 VA Power Consumption - 13 Watts Power Rating - 2 Auxiliary Switches - Shaft Rotation CW - Nema Rating 3 Features • Integral spring return returns motor to normal position when power is interrupted. • Integral junction box provides NEMA 3 weather protection. • Motor and circuitry operate from 24 Vac. Models available with factory installed transformer, or a field added internal transformer. • Quick-connect terminals are standard—screw terminal adapter is available. • Most motors have field adjustable stroke (90° to 160°). • Die-cast aluminum housing. • Nominal timing standard of 30 seconds (90° stroke), and 60 seconds (160° stroke). Other timings available. • All models have auxiliary switch cams. • Fixed torque throughout the entire voltage range. • Motors are designed for either normally open or normally closed valves and dampers. The Series 71, 72 and 76 Modutrol IV Motors are spring return and non-spring return motors used to control dampers and valves. The motors accept a current or voltage signal from an electronic controller to position a damper or valve at any point between open and closed.

SKU: HONEYWELL:M7284C1000

Product Availability: 6

$1,258.39

This product must be purchased in increments of 1

Qty:

i h

M7284C1000 HONEYWELL M7284C1000 MODUTROL MOTOR 120VAC NON SPRING RETURN

- 120V
- Stroke: Adjustable 90 to 160 degrees, asymmetrical
- 50/60Hz
- Temperature Range: -40 to 150 F
- Control Signal: Modulating, 4-20 mA
- Mounting: foot-mounted
- Torque 150 in -lb
- 15 VA Power Consumption
- 13 Watts Power Rating
- 2 Auxiliary Switches
- Shaft Rotation CW
- Nema Rating 3

Features
• Integral spring return returns motor to normal position
when power is interrupted.
• Integral junction box provides NEMA 3 weather protection.
• Motor and circuitry operate from 24 Vac. Models available with
factory installed transformer, or a field added internal transformer.
• Quick-connect terminals are standard—screw terminal adapter is
available.
• Most motors have field adjustable stroke (90° to 160°).
• Die-cast aluminum housing.
• Nominal timing standard of 30 seconds (90° stroke), and 60 seconds
(160° stroke). Other timings available.
• All models have auxiliary switch cams.
• Fixed torque throughout the entire voltage range.
• Motors are designed for either normally open or normally closed
valves and dampers.

The Series 71, 72 and 76 Modutrol IV Motors are spring return and non-spring return motors used to control dampers and valves. The motors accept a current or voltage signal from an electronic controller to position a damper or valve at any point between open and closed.
