HONEYWELL 24V 150# 4/20MA /FLTG 30 SEC 90 ENHA

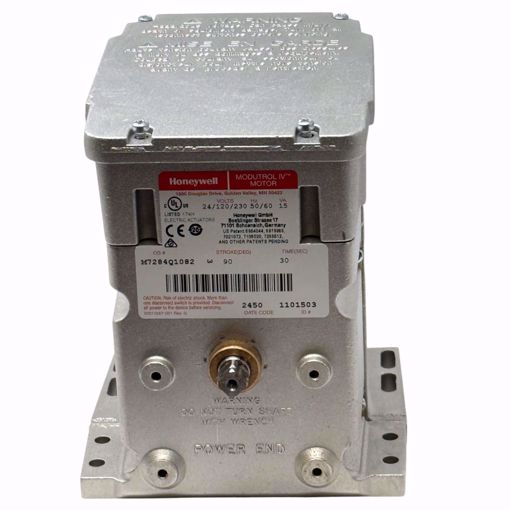

M7284Q1082 HONEYWELL 24V 150# 4/20MA /FLTG 30 SEC 90 ENHA - 24V / 120V / 230V - 50/60Hz - 15 VA - 90 Degree Stroke - Timing 30 Sec - Shaft Shape: Square - Mounting: foot-mounted - Dimensions: 6 7/16 in. high x 5 1/2 in. wide x 8 3/4 in. deep - Temperature Range: -40 to 150F - Deadweight Load on Shaft (Either End) (lb): 200 lbs - Deadweight Load on Shaft (Combined on both shafts) (lb): 300 lbs - Auxiliary Switch Ratings AFL - 120 Vac: 7.2A - Auxiliary Switch Ratings AFL - 240 Vac: 3.6A - Auxiliary Switch Ratings ALR- 120 Vac: 43.2A - Auxiliary Switch Ratings ALR- 240 Vac: 21.6A - Application Type: Electric - Fail Safe Mode: Non-Spring Return - Control Signal: Modulating, 4-20 mA - Motor Shaft: Dual ended Shaft FEATURES • Replaces M734H,J,; M744S,T,Y; and M745L,S,T,Y Motors. • M7164, M7261, M7284, and M7294 are non-spring return motors; M7282, M7285, M7286 and M7685 are spring return motors. • Integral spring return returns motor to normal position when power is interrupted. • Integral junction box provides NEMA 3 weather protection. • Motor and circuitry operate from 24 Vac. Models available with factory installed transformer, or a field added internal transformer. • Quick-connect terminals are standard—screw terminal adapter is available. • Adapter bracket for matching shaft height of older motors is available. • Most motors have field adjustable stroke (90° to 160°). • Die-cast aluminum housing. • Integral auxiliary switches are available factory mounted, or can be field added. • Nominal timing standard of 30 seconds (90° stroke), and 60 seconds (160° stroke). Other timings available. • Spring return motors can operate valve linkages from power end or auxiliary end shafts for normally closed or normally open valve applications. • All models have dual shafts (slotted and tapped on both ends). • All models have auxiliary switch cams. • Fixed torque throughout the entire voltage range. • Motors are designed for either normally open or normally closed valves and dampers. The Series 71, 72 and 76 Modutrol IV Motors are spring return and non-spring return motors used to control dampers and valves. The motors accept a current or voltage signal from an electronic controller to position a damper or valve at any point between open and closed.
