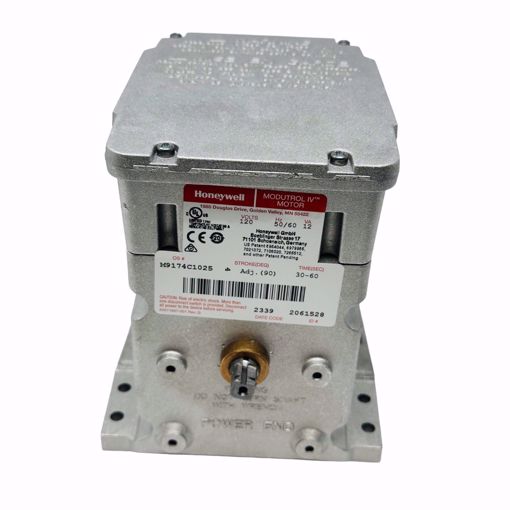

HONEYWELL MOD-MOTOR 120V WITH 2 AUX. SWITCH 30 SE

Manufacturer: Honeywell

50/60Hz 120V 12VA Stroke Adjustable 90 to 160 degrees, Asymmetrical Torque Rating (lb-in): 75 LB-in Nominal Timing (sec) 30 to 60 sec Foot Mounted Features • Integral junction box provides NEMA 3 weather protection. • Integral spring return returns motor to normal position when power is interrupted. • Motor and circuitry operate from 24 Vac. Models available with factory installed transformer, or a field added internal transformer. • Motors have field adjustable stroke (90° to 160°). • Die-cast aluminum housing. • All models have dual shafts (slotted and tapped on both ends). • All models have auxiliary switch cams. • Fixed torque throughout the entire voltage range. The Series 90 Modutrol IV Motors are spring return and non-spring return modulating proportional control motors. Use these motors with controllers that provide a Series 90 output to operate dampers or valves.

SKU: HONEYWELL:M9174C1025

Product Availability: 3

$1,265.97

This product must be purchased in increments of 1

Qty:

i h

50/60Hz
120V
12VA
Stroke Adjustable 90 to 160 degrees, Asymmetrical
Torque Rating (lb-in): 75 LB-in
Nominal Timing (sec) 30 to 60 sec
Foot Mounted
Features
• Integral junction box provides NEMA 3 weather
protection.
• Integral spring return returns motor to normal position
when power is interrupted.
• Motor and circuitry operate from 24 Vac. Models available with
factory installed transformer, or a field added internal transformer.
• Motors have field adjustable stroke (90° to 160°).
• Die-cast aluminum housing.
• All models have dual shafts (slotted and tapped on
both ends).
• All models have auxiliary switch cams.
• Fixed torque throughout the entire voltage range.

The Series 90 Modutrol IV Motors are spring return and
non-spring return modulating proportional control motors. Use
these motors with controllers that provide a Series 90 output
to operate dampers or valves.

Products specifications

Manufacturer	Honeywell
