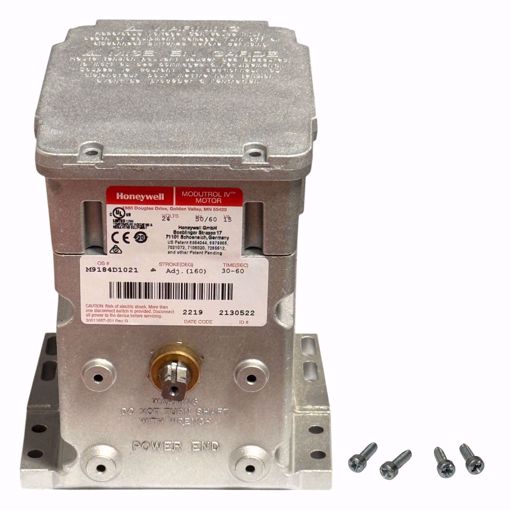

HONEYWELL VALVE/DAMPER ACTUATOR PROPORTIONING 24V

Manufacturer: Honeywell

M9184D1021 HONEYWELL VALVE/DAMPER ACTUATOR PROPORTIONING 24V - 24V - 50/60Hz - 15VA - Torque Rating (lb-in.): 150 lb-in - Temperature Range: -40 to 150 F - Nominal Timing (sec): 30-60 sec - Mounting: foot-mounted - Shaft Rotation CW - Stroke Degree 90 to 160 Degrees Features • Integral junction box provides NEMA 3 weather protection. • Integral spring return returns motor to normal position when power is interrupted. • Motor and circuitry operate from 24 Vac. Models available with factory installed transformer, or a field added internal transformer. • Quick-connect terminals are standard—screw terminal adapter is available. • Motors have field adjustable stroke (90° to 160°). • Die-cast aluminum housing. • Nominal timing standard of 30 seconds (90° stroke), and 60 seconds (160° stroke). Other timings available. • All models have dual shafts (slotted and tapped on both ends). • All models have auxiliary switch cams. • Fixed torque throughout the entire voltage range. The Series 90 Modutrol IV Motors are spring return and non-spring return modulating proportional control motors. Use these motors with controllers that provide a Series 90 output to operate dampers or valves.

SKU: HONEYWELL:M9184D1021

Product Availability: 2

$1,649.22

This product must be purchased in increments of 1

Qty:

i h

M9184D1021 HONEYWELL VALVE/DAMPER ACTUATOR PROPORTIONING 24V

- 24V
- 50/60Hz
- 15VA
- Torque Rating (lb-in.): 150 lb-in
- Temperature Range: -40 to 150 F
- Nominal Timing (sec): 30-60 sec
- Mounting: foot-mounted
- Shaft Rotation CW
- Stroke Degree 90 to 160 Degrees

Features
• Integral junction box provides NEMA 3 weather protection.
• Integral spring return returns motor to normal position when power is interrupted.
• Motor and circuitry operate from 24 Vac. Models available with factory installed transformer, or a field added internal transformer.
• Quick-connect terminals are standard—screw terminal adapter is available.
• Motors have field adjustable stroke (90° to 160°).
• Die-cast aluminum housing.
• Nominal timing standard of 30 seconds (90° stroke), and 60 seconds
(160° stroke). Other timings available.
• All models have dual shafts (slotted and tapped on both ends).
• All models have auxiliary switch cams.
• Fixed torque throughout the entire voltage range.

The Series 90 Modutrol IV Motors are spring return and non-spring return modulating proportional control motors. Use these motors with controllers that provide a Series 90 output
to operate dampers or valves.

Products specifications

Manufacturer	Honeywell
