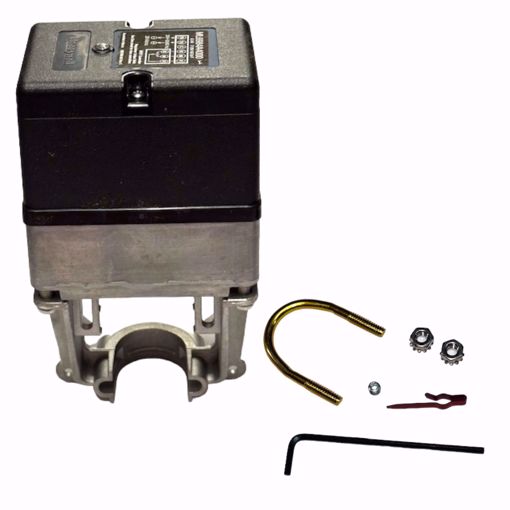

HONEYWELL ACTUATOR

- 24V - 50/60Hz - 6VA - SPDT Controller - Operating Ambient Temperature: 32° to 130° F - NEMA 3R - Strong valve seat closing force 710 Newton (160 lbs.). - Valve Actuator, For Use With: V5011/13, VGF21 and VGF22 Gas Valve - Includes Screw Terminal - Stroke: 1/2 to 1 in - Timing: 63 at 3/4 in stroke Features - Self-contained, motorized globe valve linkage. - Microprocessor-based digital position sensing and motor control for accurate positioning. - Compact size for easy installation in confined spaces. - NEMA 3R rain-proof cover for outdoor installation. • Self-calibrating for valve stroke from 1/2 in. (13 mm) to 1 in. (25 mm). • DIP switch input configuration selection. • LED (light-emitting diode) status indication. • Configurable to 3-wire mode for floating models. • 710 N 160 lbf (712 N) valve closing force. • Usable with common transformer pow er supply for multiple actuators and controllers. • 24 Vac or 28 Vdc power supply. • Field-addable position feedback/auxiliary switch module availble for 5-wire models The ML6984 and ML7984 are self-contained, self-adjusting, motorized valve actuators that mount directly onto V5011 two-way and V5013 three-way globe valves, providing linear stem operation between 1/2 in. (13 mm) and 1 in. (25 mm). ML6984 is for use with low voltage SPDT Series 20, Series 60 (on-off), or SP3T Series 60 (floating) electro-mechanical and electronic controllers.
