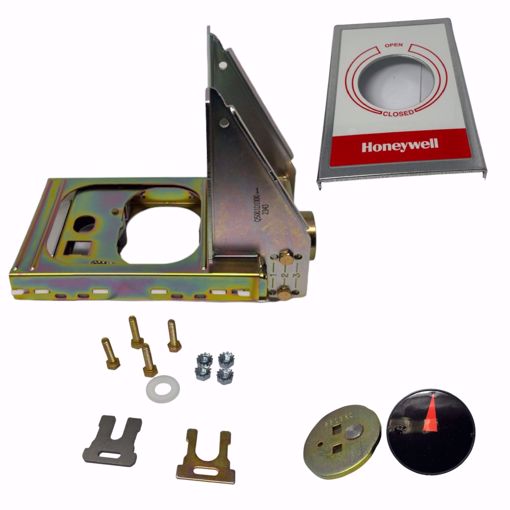

HONEYWELL VALVE BRACKET AND LINKAGE

- Stroke 3/4" - Bonnet Size 1-3/8" - Temperature Range -40 to 150 F - Includes: 1-3/8 in. valve bracket and Anti spin clip - Valve Stem Force (LB) 80,160 - Bonnet Connect Setscrew - Bonnet Size (O.D.) 1-3/8" - Stem Connect Button and Clip - Linkage Replaced Q601J, K, L, M Q618A Features • Q5001 Valve Linkage is applicable to 2-way or 3-way valves in modulating or two position service. • Linkage requires no adjustment when used with Honeywell valves and Modutrol IV Motors (can also be used with Modutrol III motors). • Q5001 Valve Linkage replaces Q601 and Q618 Valve Linkages. • Linkage mounts directly to the valve bonnet; motor mounts on linkage bracket. • Easy-to-read position indicator. • Valve stem lift height cam selectable. • Overtravel permits tight close off without excessive motor strain. • Easy mounting and valve connection. • Available brackets make linkages adaptable to many valve bodies. • 80 lb, 160 lb, and 320 lb stem force models available. The Q5001 Valve Linkage connects a Modutrol Motor to a 2- or 3-way valve. It is used primarily on steam and water valves such as the V5011 or V5013.
