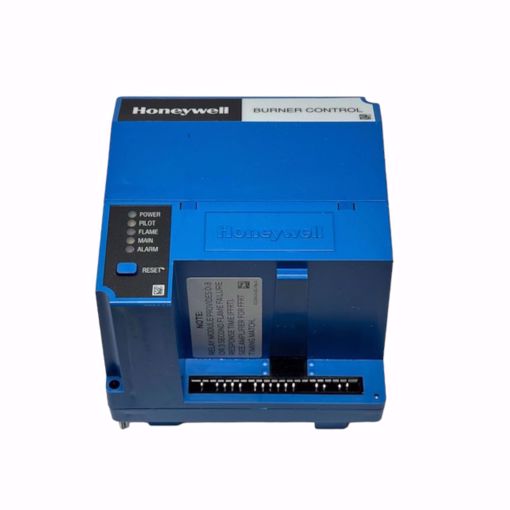

HONEYWELL AUTOMATIC PROGRAMMING CONTROL

Manufacturer: Honeywell

- Flame Establishing Period - Pilot 4 sec or 10 sec - Flame Establishing Period - Main 10 sec, or 15 sec, or 30 sec, or Intermittent - Interlocks Running - Post Purge 15 sec - 120 VAC - 50/60Hz - Ambient Temperature Range -40 F to +140 F - Early Spark Termination Yes, 5 Seconds - Local Or Remote Annunciation Of Operation And Fault Information Using The S7800 Keyboard Display Module (Not Included) - AirFlow Check User selectable - PrePurge Determined by ST7800A Purge Timer Card Features - Functions include automatic burner sequencing, flame supervision, system status indication, system or self-diagnostics and troubleshooting. - Access for external electrical voltage checks. - Application flexibility and communication interface capability. - Five LEDs provide sequence information. - Five function Run/Test Switch. - Interchangeable plug-in flame amplifiers. - Nonvolatile memory retains history files and lockout status after loss of power. - Compatible with existing Honeywell flame detectors. The Honeywell RM7800/RM7840 Relay Modules are microprocessor-based integrated burner controls for automatically fired gas, oil, or combination fuel single burner applications

SKU: HONEYWELL:RM7840G1014

Product Availability: 1

$2,400.23

This product must be purchased in increments of 1

Qty:

i h

- Flame Establishing Period - Pilot 4 sec or 10 sec
- Flame Establishing Period - Main 10 sec, or 15 sec, or 30 sec, or Intermittent
- Interlocks Running
- Post Purge 15 sec
- 120 VAC
- 50/60Hz
- Ambient Temperature Range -40 F to +140 F
- Early Spark Termination Yes, 5 Seconds
- Local Or Remote Annunciation Of Operation And Fault Information Using The S7800 Keyboard Display Module (Not Included)
- AirFlow Check User selectable
- PrePurge Determined by ST7800A Purge Timer Card

Features
- Functions include automatic burner sequencing, flame supervision, system status indication, system or self-diagnostics and troubleshooting.
- Access for external electrical voltage checks.
- Application flexibility and communication interface capability.
- Five LEDs provide sequence information.
- Five function Run/Test Switch.
- Interchangeable plug-in flame amplifiers.
- Nonvolatile memory retains history files and lockout status after loss of power.
- Compatible with existing Honeywell flame detectors.

The Honeywell RM7800/RM7840 Relay Modules are microprocessor-based integrated burner controls for automatically fired gas, oil, or combination fuel single burner applications

Products specifications

Manufacturer	Honeywell
