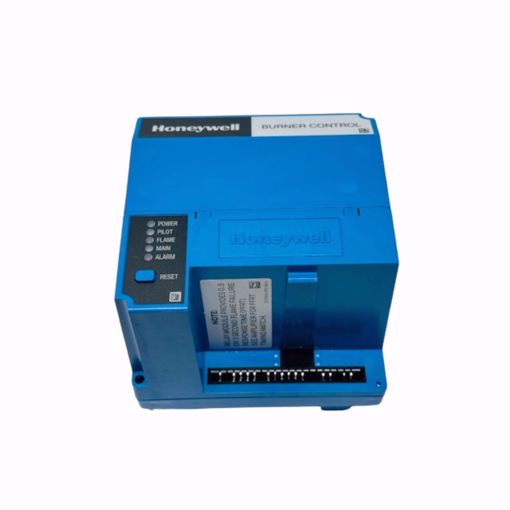

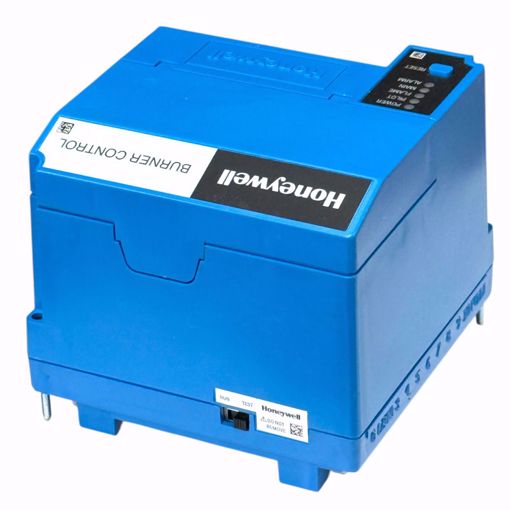

RM7840L1018 HONEYWELL FSG PROGRAMMER

Manufacturer: Honeywell

RM7840L1018 HONEYWELL FSG PROGRAMMER - 120V - 50/60Hz - Flame Establishing Pilot 4 or 10 seconds - Flame Establishing Main 15 seconds - Post Purge Timing 15 seconds - With Dust Cover Use with R7847, R7848, R7849, and R7886 amplifiers Features - Access for external electrical voltage checks. - Five LEDs provide sequence information - Five function Run/Test Switch. - Interchangeable plug-in flame amplifiers - Nonvolatile memory retains history files and lockout status after loss of power. - High/Low Switch Test Safety features: — Interlock check. — Closed loop logic test. — Dynamic AMPLI-CHECK. — Dynamic input check. — Dynamic safety relay test. — Dynamic self-check logic. — Expanded safe-start check. — High Fire Purge Switch test. — Internal hardware status monitoring. — Low Fire Start Switch test. — Tamper resistant timing and logic Required Components: - Q7800A, B Universal Wiring Subbases. R7847, R7848, R7849, R7851, R7852, R7861, or R7886 Flame Signal Amplifier. ST7800A Plug-in Purge Timer Card The Honeywell RM7840 is a microprocessor based integrated burner control for automatically fired gas, oil or combination fuel single burner applications. The RM7840 system consists of a Relay Module, Subbase, Amplifier and Purge Card. Options include Keyboard Display Module, Modbus Module, DATA CONTROLBUS MODULE, Remote Display Mounting, and First-Out Expanded Annunciator. The RM7840 is programmed to provide a level of safety, functional capability and features beyond the capacity of conventional controls. Functions provided by the RM7840 include automatic burner sequencing, flame supervision, system status indication, system or self-diagnostics and troubleshooting.

SKU: HONEYWELL:RM7840L1018

Product Availability: 3

$2,315.78

This product must be purchased in increments of 1

Qty:

i h

RM7840L1018 HONEYWELL FSG PROGRAMMER

- 120V
- 50/60Hz
- Flame Establishing Pilot 4 or 10 seconds
- Flame Establishing Main 15 seconds
- Post Purge Timing 15 seconds
- With Dust Cover

Use with R7847, R7848, R7849, and R7886 amplifiers

Features
- Access for external electrical voltage checks.
- Five LEDs provide sequence information
- Five function Run/Test Switch.
- Interchangeable plug-in flame amplifiers
- Nonvolatile memory retains history files and lockout status after loss of power.
- High/Low Switch Test

Safety features:
— Interlock check.
— Closed loop logic test.
— Dynamic AMPLI-CHECK.
— Dynamic input check.
— Dynamic safety relay test.
— Dynamic self-check logic.
— Expanded safe-start check.
— High Fire Purge Switch test.
— Internal hardware status monitoring.
— Low Fire Start Switch test.
— Tamper resistant timing and logic

Required Components:
- Q7800A, B Universal Wiring Subbases. R7847, R7848, R7849, R7851, R7852, R7861, or R7886 Flame Signal Amplifier. ST7800A Plug-in Purge Timer Card

The Honeywell RM7840 is a microprocessor based integrated burner control for automatically fired gas, oil or combination fuel single burner applications. The RM7840 system consists of a Relay Module, Subbase, Amplifier and Purge Card.

Options include Keyboard Display Module, Modbus Module, DATA CONTROLBUS MODULE, Remote Display Mounting, and First-Out Expanded Annunciator.

The RM7840 is programmed to provide a level of safety, functional capability and features beyond the capacity of conventional controls. Functions provided by the RM7840 include automatic burner
sequencing, flame supervision, system status indication, system or self-diagnostics and troubleshooting.

Products specifications

Manufacturer	Honeywell
