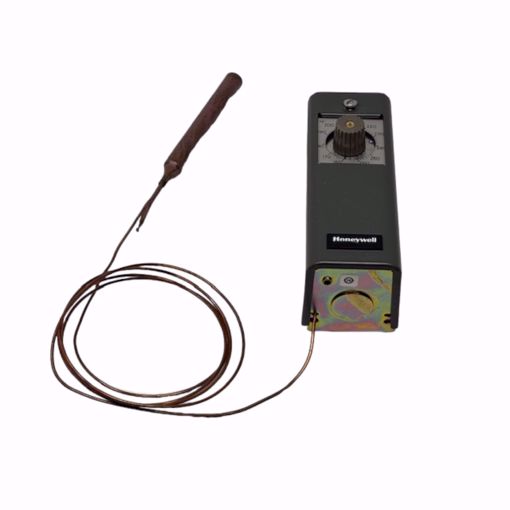

For modulating control of water or air temperature in ducts, tanks and similar applications.
Specifications
- Description: Modulating Temperature Controller, 160 F to 260 F
- Application: Provide modulating control of water or air temperature in ducts or tanks
- Type: Modulating Remote bulb
- Output Type: Analog
- Analog Output: One 135 Ohm Potentiometer
- Voltage: 24 Vac to 30 Vac
- Frequency: 60 Hz
- Frequency: 50 Hz
- Color: Gray
- Dimensions (in.): 5-5/8 in. high x 2 in. wide x 2-1/4 in. deep
- Sensor Element: Copper bulb
- Number of Sensor Inputs: 1
- Capillary Length (ft): 5 ft
- Bulb Size (in.): 1/2 in. diameter x 4-3/16 in. long
- Setpoint Temperature Range (F): 160 F to 260 F
- Maximum Operating Temperature (F): 280 F
- Throttling Range (F): 3 F to 30 F
Features
- Fast response models (for duct mounting) have coiled sensing element giving at least four times faster response than standard models
- Ambient temperature compensated for the case and tubing
- Sensing element capillary tubing allows remote mounting of sensing element
- Setpoint may be read and adjusted through cover
- Throttling dial inside case adjusts proportional throttling range.
