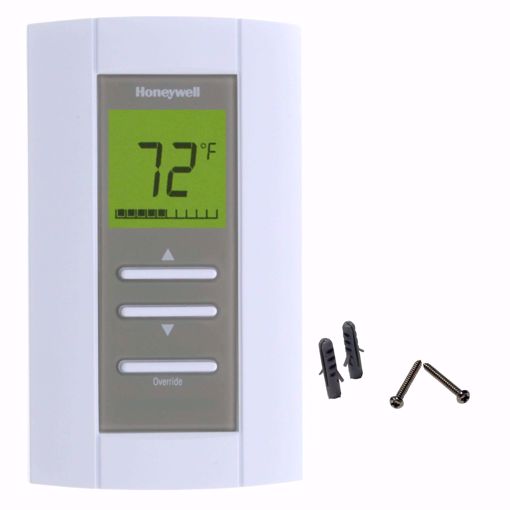

🌡️ TB6980B1006 Honeywell ZonePRO 24V Floating Thermostat (50°F–95°F)
🔍 Product Overview
The Honeywell TB6980B1006 ZonePRO Thermostat is a precision 24V low-voltage thermostat designed for pressure-dependent VAV (Variable Air Volume) systems, as well as hydronic perimeter heating and cooling applications.
This advanced thermostat provides floating control outputs for accurate temperature regulation and includes night setback capability for energy savings during unoccupied hours.
With a wide temperature range of 50°F to 95°F, and options for max/min heating and cooling setpoints, the ZonePRO thermostat ensures both comfort and efficiency in commercial and institutional environments.
✅ Key Features
✔️ 24V low-voltage thermostat for VAV and hydronic systems
✔️ Floating output signal for precise actuator control
✔️ Wide temperature range: 50°F to 95°F
✔️ Energy-saving Night Setback (NSB) terminal
✔️ Max. and Min. setpoints for heating and cooling adjustment
✔️ Wall-mount design for easy installation and maintenance
✔️ Ideal for bypass boxes with or without reheat functions
✔️ Compact, reliable Honeywell build quality
✔️ Compatible replacement for T6984D1046, T6984E1043 models
⚙️ Technical Specifications
| Specification | Details |
|---|
| Model |
TB6980B1006 |
| Brand |
Honeywell |
| Type |
ZonePRO Floating Thermostat |
| Temperature Range |
50°F to 95°F |
| Voltage |
24 VAC |
| Frequency |
60 Hz |
| Output Signal Type |
Floating |
| Output Signal Burden |
0.5A max @ 24 VAC |
| Mounting |
Wall Mount |
| Applications |
VAV, hydronic perimeter heating/cooling, bypass box |
| Setpoint Adjustments |
Min/Max heating and cooling limits |
| Energy Feature |
Night Setback (NSB) |
| Replaces |
T6984D1046, T6984E1043 |
⚠️ Common Symptoms / When to Replace
You may need to replace your thermostat if you notice:
-
🔸 Zone temperature drifts or fails to hold setpoint
-
🔸 HVAC damper or actuator doesn’t respond to changes
-
🔸 Thermostat display is unresponsive or erratic
-
🔸 No signal or inconsistent control to the VAV box
-
🔸 Excessive cycling or failure to maintain comfort levels
❓ (FAQ) Frequently Asked Questions
Q: What is a “floating” thermostat output?
A: A floating output sends incremental open/close control signals to modulate an actuator rather than on/off signals, allowing more precise temperature control.
Q: Can this thermostat be used for both heating and cooling?
A: Yes — it supports heating, cooling, or both, with adjustable setpoint limits.
Q: Does it include a Night Setback feature?
A: Yes — the NSB terminal allows connection to a central time clock or occupancy sensor for energy savings during off-hours.
Q: Can I replace a T6984D1046 or T6984E1043 with this?
A: Yes — the TB6980B1006 is a direct replacement for those models.
Q: Is this suitable for hydronic perimeter heat?
A: Absolutely. It’s designed for hydronic and VAV zone control applications.
🛒 Shopping Tips
-
✅ Check system voltage before installation — must be 24V.
-
✅ Confirm actuator type supports floating control signals.
-
✅ Use the NSB feature for energy-efficient scheduling.
-
✅ Mount on an interior wall away from direct sunlight or drafts for best accuracy.
-
✅ Replace existing thermostat wiring one-to-one to avoid miswiring
