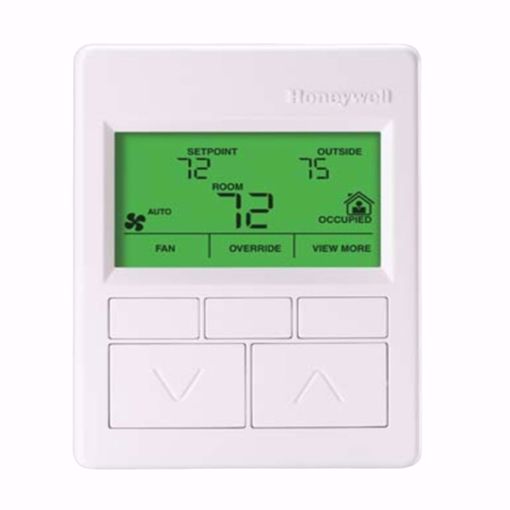

LCD WALLMODULE TEM&HUM SYLKBUS

Features Ability to control user access to controller parameters. Parameter access can be customized by using the Tridium Niagara Workbench tool. Programmable for: Home screen options, tenant access, contractor access, access to controller parameters, setpoint, override, fan, and other parameters. Supplied with eight pre-programmed configurations (e.g. VAV with balancing) in the wall module configuration tool. Ability to access and adjust most parameters in the programmable controller (except Scheduling). Ability to balance the VAV system from the wall module. Home screen can display one to three of any of the following parameters: Temperature Setpoint, Room Temperature, Room Humidity, Outdoor Humidity, Outdoor Temperature, and Time, or one of virtually any parameter in the controller. Network bus jack. Simple 2-wire terminal connection to the programmable controller and an optional 2-wire terminal connection for the network. All connections are polarity insensitive. Retention of user configuration, including setpoints after a power outage. The TR71/TR75 Series are 2-wire, non-polarity sensitive, Sylk™ bus communicating wall modules for use with Honeywell programmable controllers. All models have a space-temperature sensor, network bus jack, and an LCD panel with three soft keys and two Up/Down adjustment keys. The Zio TR70 Series (TR70, TR70-H, TR71, TR71-H, TR75, and TR75-H OS numbers) LCD Wall Modules provide an operator interface for monitoring and adjusting parameters in the wall module itself and in the programmable controller depending on the programmable controller used) to which it is wired. The wall module may be customized and supports both a contractor and a tenant user interface.
