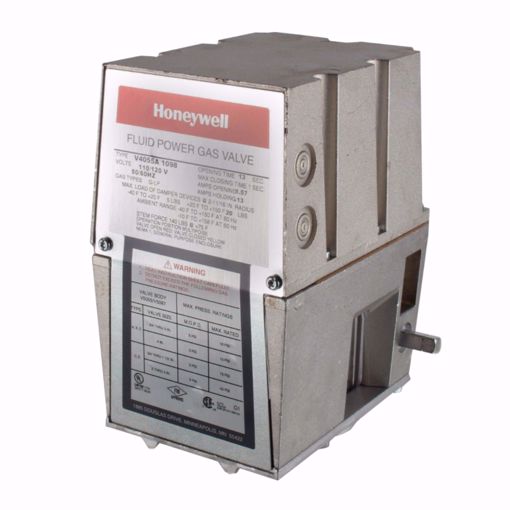

HONEYWELL ON-OFF FLUID POWER GAS VALVE ACTUATOR

- 120V - 50/60Hz - Opening Time 13 Sec - Max closing Time 1 Sec - AMPS Opening 1.57 - AMPS Holding .13 - Maximum Pressure PSI 5 PSI - Actuator Type On/Off - Temperature Range : -10°F to 158°F FEATURES • The V4055 Actuator, when used with the VE5000a, V5097 or V5055 Valve, is rated for final safety shutoff service • The V4055 Actuator can be used with the characterized guide model of the V5055 or V5097 Gas Valve to enhance light off smoothness. • Maximum closing time is one second, which meets code, standard and insurer requirements. • Red OPEN indicator attached to actuator stem shows when valve is even slightly open; yellow SHUT indicator on valve stem shows only when gas valve is fully closed. • Ambient temperature rating is -40°F to +150°F (-40°C to +66°C) for 60 Hz models and -10°F to +158°F (-23°C to +70°C) for 50 Hz and 50/60 Hz models. • Valve and actuator combinations can be mounted in any position, with the exception of the 220 to 240 Vac, 50/60 Hz models, which are mounted vertically. • Standard enclosure meets NEMA 1 (IP30) requirements; models available with NEMA 4 (IP54) weatherproof enclosure. The V4055 Gas Valve Actuator, in combination with a VE5000a, V5055 or V5097 Gas Valve, controls the gas supply to commercial and industrial burners.
