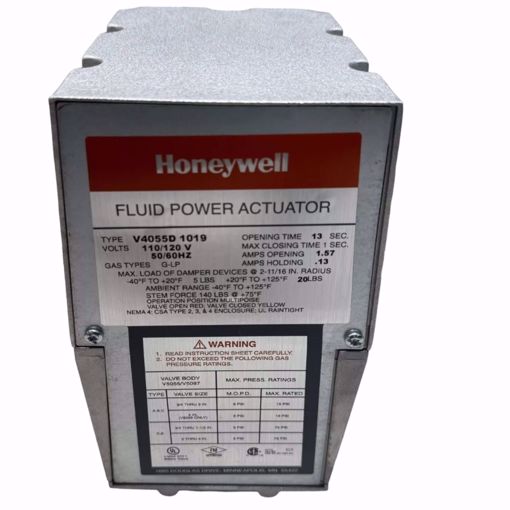

HONEYWELL FLUID POWER ACTUATOR 120V 13 SEC. W/ DAMPER SHAFT

- 120 VAC - Temperature Range -40 to 150 F - Maximum Pressure 5 PSI - Opening Timing 13 Seconds - Actuator Type On/Off - Max Closing Time 1 Sec - AMPS OPENING 1.57 - AMPS HOLDING .13 - NEMA 4 FEATURES • The V4055 Actuator, when used with the VE5000a, V5097 or V5055 Valve, is rated for final safety shutoff service • The V4055 Actuator can be used with the characterized guide model of the V5055 or V5097 Gas Valve to enhance light off smoothness. • The standard model has an opening time of 26 seconds at 60 Hz or 32 seconds at 50 Hz. A fast opening model is available with timings of 13 seconds at 60 Hz or 16 seconds at 50 Hz • Maximum closing time is one second, which meets code, standard and insurer requirements. • Models available with damper shaft, with or without spring return; shaft extends out both sides and rides in Teflon-like Delrin bushings; used with standard 7616BR Damper Crank Arm • Red OPEN indicator attached to actuator stem shows when valve is even slightly open; yellow SHUT indicator on valve stem shows only when gas valve is fully closed. The V4055 Gas Valve Actuator, in combination with a VE5000a, V5055 or V5097 Gas Valve, controls the gas supply to commercial and industrial burners.
