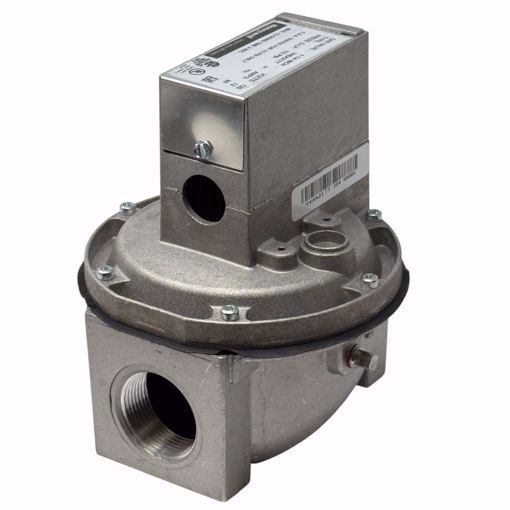

V48A2177 HONEYWELL 120V 1-1/4" DIAPHRAGM GAS VALVE 1/2 PSI
- Gas Valve 1-1/4"
- Type V48A2177
- 1/2 PSI
- 120V
- 0.12 Amps
- 60Hz
- Max Closing time 2 Sec
- Temp Range 32 to 125 F
- Mounting Horizontal
- 2100 CFH
- Fuel Type Natural Gas and Propane
- Body Type Aluminum
- Valve Pattern Straight-Through
Features:
- V48 for line voltage service; V88 for 24Vac service.
- Close firmly with diaphragm that is both weight and spring loaded.
- Two second maximum closing time.
- Valve closes on power failure; recommended for final shutoff service.
- Set opening time with various sized bleed orifices or adjustable bleed valve.
- Use with LP, natural or manufactured gases.
- Made with cast aluminum in straight-through valve pattern.
- Valve position indicator available for 1-1/4 in. V48A2227.
The V48 and V88 are solenoid-operated diaphragm valves suitable for LP (Liquefied Petroleum), natural, and manufactured gases. They are normally used on atmospheric boilers, commercial water heaters, and rooftop heaters.
