V4943A1037 HONEYWELL 1.5 120V AUTO VALVE (STD TIME)

Manufacturer: Honeywell

V4943A1037 HONEYWELL 1.5 120V AUTO VALVE (STD TIME) - 120V - 60Hz - 0.055 Amps - 1/2 PSI Max - LP or NAT - 2300 CFH - Mounting Horizontal - Rapid Opening Features • V4943A used with line voltage, two-wire thermostat or controller. • V8943A used with 24 Vac thermostat or controller. • Valves open in less than six seconds. • Rated for 0.5 psi (3.4 kPa). • Rated for -40°F to +150°F (-40°C to 66°C). • Firm closing; diaphragm is spring-loaded. • Valves close on power failure; recommended for final shutoff service. • 1/4 in. (6 mm) spade terminal electrical connections. Lead wires and cover for electrical conduit connections are provided. • Designed as replacement valves for V4843A/V8843A. The V4943A and V8943A are solenoid-operated diaphragm valves suitable for Liquefied Petroleum (LP) and natural gases. They are normally used on atmospheric boilers, commercial water heaters, and rooftop heaters.

SKU: HONEYWELL:V4943A1037

Product Availability: 1

$512.19

This product must be purchased in increments of 1

Qty:

i h

V4943A1037 HONEYWELL 1.5 120V AUTO VALVE (STD TIME)

- 120V
- 60Hz
- 0.055 Amps
- 1/2 PSI Max
- LP or NAT
- 2300 CFH
- Mounting Horizontal
- Rapid Opening

Features
• V4943A used with line voltage, two-wire thermostat or controller.
• V8943A used with 24 Vac thermostat or controller.
• Valves open in less than six seconds.
• Rated for 0.5 psi (3.4 kPa).
• Rated for -40°F to +150°F (-40°C to 66°C).
• Firm closing; diaphragm is spring-loaded.
• Valves close on power failure; recommended for final shutoff service.
• 1/4 in. (6 mm) spade terminal electrical connections. Lead wires and cover for electrical conduit connections are provided.
• Designed as replacement valves for V4843A/V8843A.

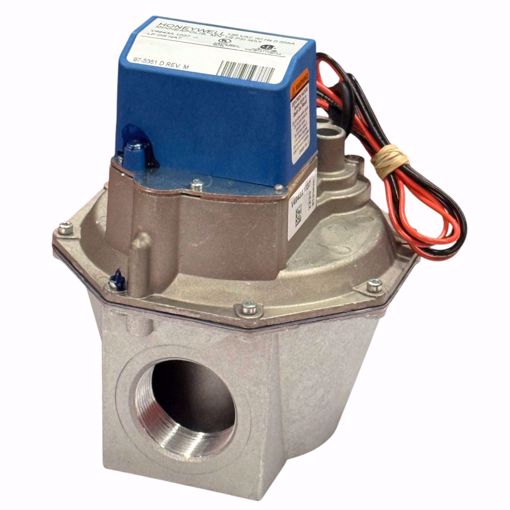

The V4943A and V8943A are solenoid-operated diaphragm valves suitable for Liquefied Petroleum (LP) and natural gases. They are normally used on atmospheric boilers, commercial water heaters, and rooftop heaters.

Products specifications

Manufacturer	Honeywell
