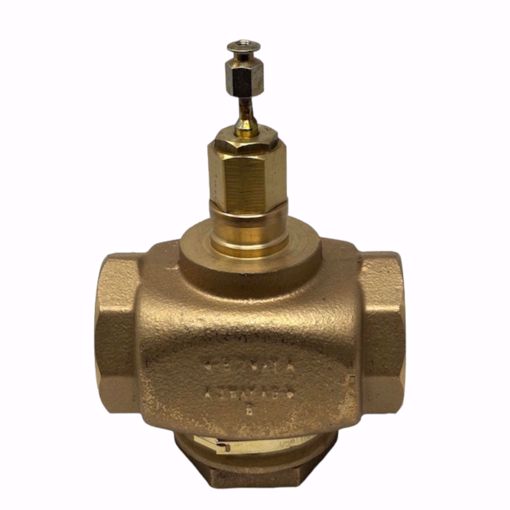

HONEYWELL STEAM/WATER GLOBE VALVE 2 INCH 47CV

Manufacturer: Honeywell

- Two-Way Globe - Steam, or Chilled or Hot Water with up to 50 % Glycol - Female NPT Connection - ANSI/ASME Rating: 150 - Stem Travel: 3/4" - Maximum Differential Pressure Ratings (Close-off) (psi): 240 PSI - Pressure Rating 140 PSI WOG - Ambient Temperature Rating: 36 F to 248 F water - Ambient Temperature Rating (Steam): 340 F - Leakage Rating: Seat: 0.05% of Cv - Bonnet Size:1-3/8 in. - 2" Valve Size - 47 Cv FEATURES - Red brass body with NPT-threaded end connections. - Low seat leakage rate (≤0.05 percent of Cv). - 50:1 rangeability per VDI/VDE 2173. - Spring-loaded, self-adjusting packing. - Accurate positioning to ensure state of the art temperature control. - Directly coupled electric and pneumatic actuators for easy mounting. - Sizes range from 1/2 in. to 2 in. - Valve designs provide equal percentage flow characteristic for water and linear flow characteristic for steam. - Stainless steel stem and metal-to-metal seats. - Repack and rebuild kits for field servicing. The V5011N is a two-way threaded globe valve that controls steam, water, and glycol solutions (up to 50 percent concentration) in heating or cooling HVAC applications. The valve is used in two-position and modulating control systems. The valve is not suitable for combustible gas service.

SKU: HONEYWELL:V5011N2097

Product Availability: Out of stock

$780.10

This product must be purchased in increments of 1

Qty:

i h

- Two-Way Globe
- Steam, or Chilled or Hot Water with up to 50 % Glycol
- Female NPT Connection
- ANSI/ASME Rating: 150
- Stem Travel: 3/4"
- Maximum Differential Pressure Ratings (Close-off) (psi): 240 PSI
- Pressure Rating 140 PSI WOG
- Ambient Temperature Rating: 36 F to 248 F water
- Ambient Temperature Rating (Steam): 340 F
- Leakage Rating: Seat: 0.05% of Cv
- Bonnet Size:1-3/8 in.
- 2" Valve Size
- 47 Cv

FEATURES
- Red brass body with NPT-threaded end connections.
- Low seat leakage rate (≤0.05 percent of Cv).
- 50:1 rangeability per VDI/VDE 2173.
- Spring-loaded, self-adjusting packing.
- Accurate positioning to ensure state of the art temperature control.
- Directly coupled electric and pneumatic actuators for easy mounting.
- Sizes range from 1/2 in. to 2 in.
- Valve designs provide equal percentage flow characteristic for water and linear flow characteristic
for steam.
- Stainless steel stem and metal-to-metal seats.
- Repack and rebuild kits for field servicing.

The V5011N is a two-way threaded globe valve that controls steam, water, and glycol solutions (up to 50 percent concentration) in heating or cooling HVAC applications. The valve is used in two-position and modulating control systems. The valve is not suitable for combustible gas service.

Products specifications

Manufacturer	Honeywell
