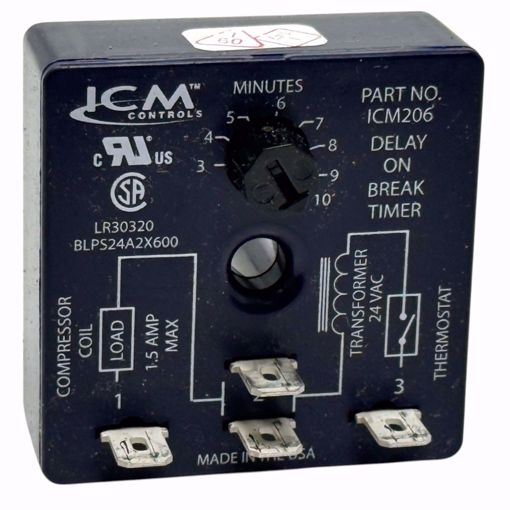

206 ICM DELAY ON BREAK TIMER: BROWNOUT PROTECTION COMPRES

Manufacturer: ICM Controls

206 ICM DELAY ON BREAK TIMER: BROWNOUT PROTECTION COMPRES SPECIFICATIONS: INPUT - Voltage: 18-30 VAC - Frequency: 50-60 Hz OUTPUT RATINGS - Maximum: 1.5 amps - Minimum: 40 mA - Inrush: 15 amps TIME DELAY - 3-10 minute adjustable WEIGHT/DIMENSIONS: - Weight: 0.15 - Height: 1.25 - Width: 2 Length: 2 DETAILS: - Compressor lockout/anti-short cycle timer - Brownout protection - UL 873 recognition as compressor controller - Helps prevent scroll compressor reversal - Fast response time: 16ms - Prevents low voltage starts - Eliminates relay chatter due to thermostat bounce or tampering - Works with anticipator-type thermostats - 18-30 VAC ICM206 is UL recognized and acts as a compressor controller; It prevents scroll reversal; low voltage starts and provides complete brownout protection – 3–10-minute adjustable timing

SKU: ICM:206

Product Availability: 2

$37.04

This product must be purchased in increments of 1

Qty:

i h

206 ICM DELAY ON BREAK TIMER: BROWNOUT PROTECTION COMPRES

SPECIFICATIONS:
INPUT
- Voltage: 18-30 VAC
- Frequency: 50-60 Hz

OUTPUT RATINGS
- Maximum: 1.5 amps
- Minimum: 40 mA
- Inrush: 15 amps

TIME DELAY
- 3-10 minute adjustable

WEIGHT/DIMENSIONS:
- Weight: 0.15
- Height: 1.25
- Width: 2
Length: 2

DETAILS:
- Compressor lockout/anti-short cycle timer
- Brownout protection
- UL 873 recognition as compressor controller
- Helps prevent scroll compressor reversal
- Fast response time: 16ms
- Prevents low voltage starts
- Eliminates relay chatter due to thermostat bounce or tampering
- Works with anticipator-type thermostats
- 18-30 VAC

ICM206 is UL recognized and acts as a compressor controller; It prevents scroll reversal; low voltage starts and provides complete brownout protection – 3–10-minute adjustable timing
