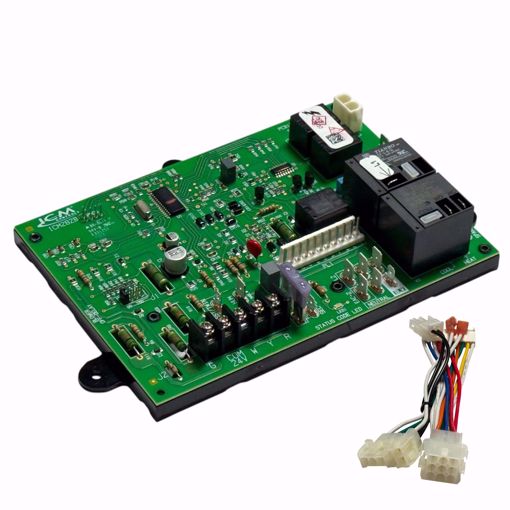

ICM Controls ICM282A Replacement Furnace Control Board For Carrier, Payne And Bryant HK42FZ0-XX
Specifications:
Line Voltage Range: 98 to 132 VAC @ 60Hz
Ignitor: 5A @ 120 VAC
Cool Blower: 30A, 2 HP, 240 VAC
Heat: 5A, 1/2 HP, 240 VAC
Inducer Motor: 4A, FLA-8.0 LRA @ 120 VAC
Gas Valve: 1.5A @ 30 VAC
ICM282A Furnace Control - with software for enhanced controls operation in counterflow and downflow furnace applications. Replacement for OEM models including Carrier HK42FZ0-xx series control boards.
Low cost replacement for Carrier HK42FZ004/007/008/009/011/013/016
Controls gas valve, ignitor, blower motor, inducer, humidifier and air cleaner
Microprocessor-based precision
Software for enhanced controls operation in counterflow and downflow furnace applications
Designed for 100% gas shutoff in case of ignition failure
Twinning compatible with another ICM282A board
Reverse polarity protection
Secondary brownout voltage protection
Compatible with 24 VAC standard thermostat
Diagnostic fault codes/LED to aid in troubleshooting
Can Be Used To Replace Carrier: HK42FZ004, HK42FZ007, HK42FZ008, HK42FZ009, HK42FZ011, HK42FZ013, HK42FZ016, 325878-751, ICM282
