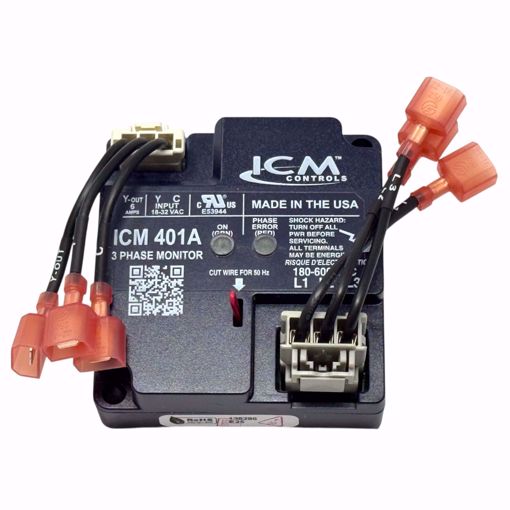

3 PHASE LOSS AND REVERSAL PROTECTION, 190-600 VAC

Manufacturer: ICM Controls

ICM 401A 3 PHASE LOSS AND REVERSAL PROTECTION, 190-600 VAC SPECIFICATIONS: Voltage: – 180-600 VAC Frequency: – 50/60 Hz Control: – 18-32 VAC Output: – Relay, SPST – N.O.: 6 Amps @32 VAC Max The ICM401A offers affordable protection against phase loss/reversal and unbalance. - Low-cost 3-phase protection for single side - Monitors for phase reversal, phase loss, and unbalance % as a function of input voltage - Bright LED indicators for ON and FAULT - Universal 3-phase input: 180-600 VAC - Control voltage: 18-32 VAC - Epoxy-encapsulated for moisture protection Replaces: - Supco: TPMP2 - Mars: 32536 Upon wiring three phase voltage (180-600 VAC) to the ICM401A and connecting 24 VAC single-phase voltage to the Y & C terminals, the control will continuously monitor the three-phase line for phase loss and phase reversal. If all voltage conditions are within the specified range, a green light will illuminate on the ICM401A, and the Y-OUT terminal will be energized with 24 VAC. Upon a phase loss or a phase reversal, a red fault light will illuminate on the ICM401A indicating a fault is presently occurring and the Y-OUT terminal will be de-energized. Once the fault is no longer present and providing the 24 VAC control voltage is still applied at Y & C, the ICM401A will automatically re-energize the Y-OUT terminal.

SKU: ICM:401A

Product Availability: Out of stock

$45.04

This product must be purchased in increments of 1

Qty:

i h

ICM 401A 3 PHASE LOSS AND REVERSAL PROTECTION, 190-600 VAC

SPECIFICATIONS:
Voltage:
– 180-600 VAC
Frequency:
– 50/60 Hz
Control:
– 18-32 VAC
Output:
– Relay, SPST
– N.O.: 6 Amps @32 VAC Max

The ICM401A offers affordable protection against phase loss/reversal and unbalance.
- Low-cost 3-phase protection for single side
- Monitors for phase reversal, phase loss, and unbalance % as a function of input voltage
- Bright LED indicators for ON and FAULT
- Universal 3-phase input: 180-600 VAC
- Control voltage: 18-32 VAC
- Epoxy-encapsulated for moisture protection

Replaces:
- Supco: TPMP2
- Mars: 32536

Upon wiring three phase voltage (180-600 VAC) to the ICM401A and connecting 24 VAC single-phase voltage to the Y & C terminals, the control will continuously monitor the three-phase line for phase loss and phase reversal. If all voltage conditions are within the specified range, a green light will illuminate on the ICM401A, and the Y-OUT terminal will be energized with 24 VAC. Upon a phase loss or a phase reversal, a red fault light will illuminate on the ICM401A indicating a fault is presently occurring and the Y-OUT terminal will be de-energized. Once the fault is no longer present and providing the 24 VAC control voltage is still applied at Y & C, the ICM401A will automatically re-energize the Y-OUT terminal.
