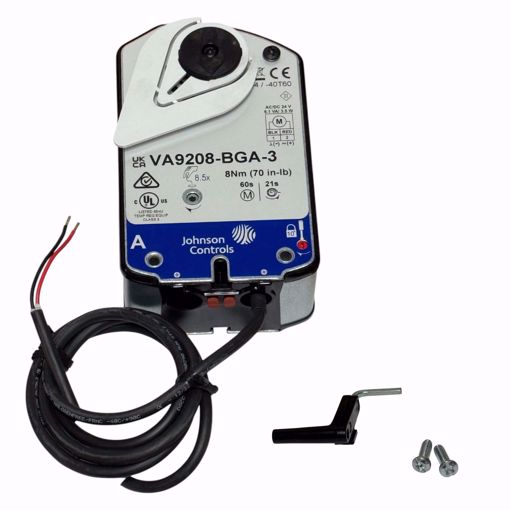

24V 71S ONOFF SR 2AUXSW ACT

Manufacturer: Johnson Controls

VA9208-BGA-3 JOHNSON 24V 71S ONOFF SR 2AUXSW ACT - Torque 70 lb-in - 24V - Fail Safe Mode Spring Return - Run Time 60 Seconds - Power On Running Rotation Time 55 to 71 Seconds - Power Off (Spring Return) @ 90 degrees 13 to 26 Seconds - Stroke 90 degrees - IP54 - Power Consumption 6.1 VA - 3.5 Watts - Temp Range Operating -40 to 140 F - Cable Lead Length 4 FT - 50/60Hz Features • direct mounting with a single screw • electronic stall detection • double-insulated construction The VA9208-xxx-x Series Electric Spring Return Valve Actuators are direct-mount valve actuators. These bidirectional actuators are used to provide accurate positioning on Johnson Controls VG1000 Series 1-1/ 4, 1-1/2, and 2 in. (DN32, DN40, and DN50) ball valves in Heating, Ventilating, and Air Conditioning (HVAC) applications. A mechanical spring return system provides rated torque with and without power applied to the actuator

SKU: JOHNSON:VA9208-BGA-3

Product Availability: 1

$203.24

This product must be purchased in increments of 1

Qty:

i h

VA9208-BGA-3 JOHNSON 24V 71S ONOFF SR 2AUXSW ACT

- Torque 70 lb-in
- 24V
- Fail Safe Mode Spring Return
- Run Time 60 Seconds
- Power On Running Rotation Time 55 to 71 Seconds
- Power Off (Spring Return) @ 90 degrees 13 to 26 Seconds
- Stroke 90 degrees
- IP54
- Power Consumption 6.1 VA
- 3.5 Watts
- Temp Range Operating -40 to 140 F
- Cable Lead Length 4 FT
- 50/60Hz

Features
• direct mounting with a single screw
• electronic stall detection
• double-insulated construction

The VA9208-xxx-x Series Electric Spring Return Valve Actuators are direct-mount valve actuators. These bidirectional actuators are used to provide accurate positioning on Johnson Controls VG1000 Series 1-1/ 4, 1-1/2, and 2 in. (DN32, DN40, and DN50) ball valves in Heating, Ventilating, and Air Conditioning (HVAC) applications. A mechanical spring return system provides rated torque with and without power applied to the actuator
