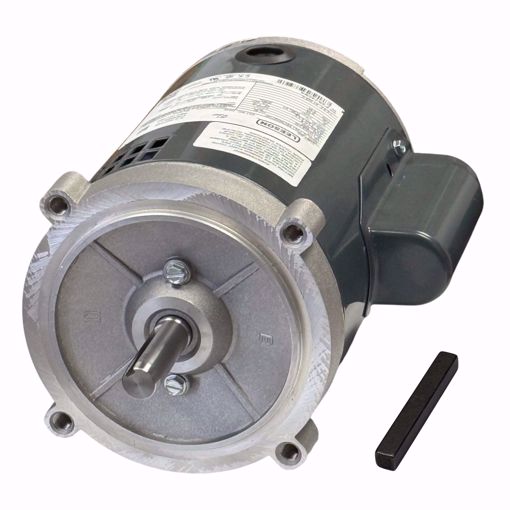

O210 1/3 3450 56C 1/60/115/208-230

Manufacturer: MARS

Part #:056C34D2114 Catalog #:O210 Model #:56C34D2114F Nameplate Specifications - 1 Phase - Output KW: 0.25 kW - 3450 RPM - Frame 56 C - Thermal Protection Automatic - Current 5.6/2.7-2.8 A - 1/3 HP - 115/208-230 V - Enclosure 1.75 - Efficiency 64 % - 60Hz Technical Specifications - Electrical Type Capacitor Start Induction Run - 2 Poles - Mounting Round - Frame Material Rolled Steel - Rotation Selective Counterclockwise - Motor Orientation Horizonal - Shaft Extension 2.06 IN KEY FEATURES - UL recognized component listing and CSA certification ensures the product is safe for use. - Double shielded ball bearings provide longer service life. - Continuous or continuous air over duty design allows consistent operation at the rated power(as noted). - Various mounting configurations (as noted).

SKU: MARS:O210

Product Availability: Out of stock

$278.73

This product must be purchased in increments of 1

Qty:

i h

Part #:056C34D2114
Catalog #:O210
Model #:56C34D2114F

Nameplate Specifications
- 1 Phase
- Output KW: 0.25 kW
- 3450 RPM
- Frame 56 C
- Thermal Protection Automatic
- Current 5.6/2.7-2.8 A
- 1/3 HP
- 115/208-230 V
- Enclosure 1.75
- Efficiency 64 %
- 60Hz

Technical Specifications
- Electrical Type Capacitor Start Induction Run
- 2 Poles
- Mounting Round
- Frame Material Rolled Steel
- Rotation Selective Counterclockwise
- Motor Orientation Horizonal
- Shaft Extension 2.06 IN

KEY FEATURES
- UL recognized component listing and CSA certification ensures the product is safe for use.
- Double shielded ball bearings provide longer service life.
- Continuous or continuous air over duty design allows consistent operation at the rated power(as noted).
- Various mounting configurations (as noted).

Products specifications

Manufacturer	MARS
