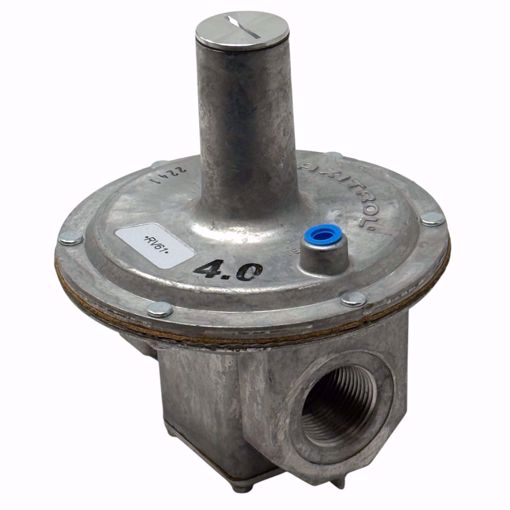

RV61-1-1/4 MAXITROL 1 1/4" REGULATOR 1# MAX
- Pipe size 1-1/4 inch
- 1" inlet pressure
- Body Type Aluminum
- Regulator Type: Straight-Thru-Flow
- Max Inlet Pressure: 1 PSI
- Mounting Position Upwards
- Spring Range 3 to 6 inches.
- 2500000 BTU
This item replaces: RV61-1/4
Maxitrol’s original straight-thru-flow (STF) design regulators are non-lockup type regulators for high capacities at low inlet pressures. The difference between STF design and other type
regulators is the conical valve. The cone principal permits gas to flow straight through the regulator without changing directions.
Frictional flow resistance is reduced, resulting in greater capacity. An improved flow pattern provides accurate, sensitive regulation at extremely low-pressure differentials.
Typical applications include residential, commercial, and industrial gas-fired appliances and equipment used on low or medium pressure gas supplies.
