BZE6-2RQ MIRCOSWITCH 1NC/1NO SPDT TOPPLUNGERACTSNAP

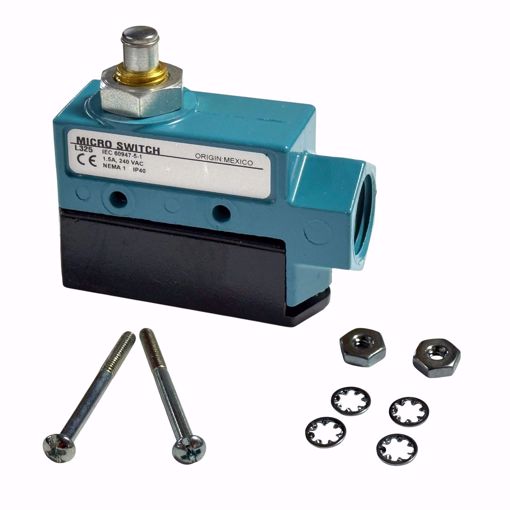

⚙️ BZE6-2RQ HONEYWELL 1NC/1NO SPDT TOP PLUNGER ACTUATOR LIMIT SWITCH

The Honeywell BZE6-2RQ MICRO SWITCH is a high-precision SPDT (Single Pole Double Throw) limit switch engineered for dependable performance in industrial, commercial, and automation systems. Featuring a top plunger actuator and rugged design, this switch provides consistent operation under demanding conditions with both AC and DC electrical loads.

⚠️ Important Clarification – Honeywell MICRO SWITCH

• NO (Normally Open): The circuit is open in its default state; current flows only when the switch is actuated.

• NC (Normally Closed): The circuit is closed in its default state; current flow is interrupted when the switch is actuated.

These contact types are standard in Honeywell’s MICRO SWITCH line, ensuring precise, repeatable actuation and dependable electrical feedback in control systems.

✅ Key Features

✅ Top plunger actuator for precise limit switch operation
✅ SPDT contact configuration: 1NC / 1NO for versatile switching
✅ AC Contact Rating: 15A @ 125, 250, or 480 VAC
✅ DC Contact Rating: 2A @ 600 VDC
✅ Motor Load Ratings: 1/8 HP @ 125 VAC, 1/4 HP @ 250 VAC
✅ Electrical connections via screw terminals
✅ NEMA 1 rated enclosure
✅ Operating Temperature: -25° to 160°F (-32° to 71°C)
✅ IP40 protection against solid objects
✅ Wiring entry: 1/2" NPT
✅ Chassis mounting for secure installation

📊 Specifications

⚠️ Common Symptoms Indicating Replacement

• Fails to actuate or intermittent switching

• Electrical arcing or burnt contacts

• Mechanical wear on plunger actuator

• Loose or damaged wiring terminals

• Reduced performance in extreme temperatures

❓ Frequently Asked Questions

Q: What is the contact configuration?
A: SPDT – 1 Normally Closed (NC) and 1 Normally Open (NO).

Q: What do NO and NC mean?
A:

• NO (Normally Open): The circuit is open in the default state; current flows only when actuated.

• NC (Normally Closed): The circuit is closed in the default state; current is interrupted when actuated.

Q: What are the electrical ratings?
A: AC: 15A @ 125, 250, or 480 VAC; DC: 2A @ 600 VDC.

Q: What temperature range does it operate in?
A: -25° to 160°F (-32° to 71°C).

Q: How is it mounted?
A: Chassis mount with 1/2" NPT wiring entry.

Q: What protection does it have?
A: NEMA 1 enclosure, IP40 dust protection.

🛒 Shopping Tips

✔ Verify your system’s voltage, amperage, and actuation type before ordering.
✔ Confirm SPDT 1NC/1NO configuration compatibility.
✔ Inspect actuator and terminals during installation for proper connection.
✔ Always use genuine Honeywell MICRO SWITCH components for maximum reliability and safety.
