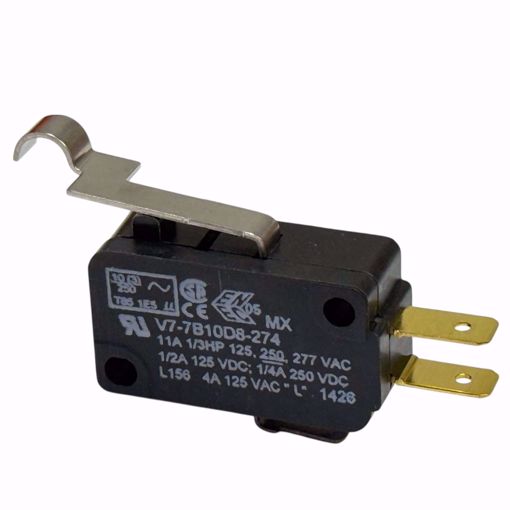

🔹 V7-7B10D8-274 Honeywell MicroSwitch SPDT 1NO/1NC 11A 250VAC

The Honeywell V7-7B10D8-274 MicroSwitch is a miniature SPDT switch designed for reliable long-term operation in rugged environments. With high versatility, this switch is suitable for precision on/off limits, presence/absence sensing, or embedded in pressure and temperature assemblies.

✅ Key Features

• ✅ SPDT Contact Form: 1NO / 1NC

• ✅ Electrical Ratings: 11A @ 125/250/277 VAC, 1/2A @ 125 VDC, 1/4A @ 250 VDC

• ✅ Operating Temperature Range: -40°F to 185°F (-40°C to 85°C)

• ✅ Versatile Actuation: Pin plunger, optional integral or auxiliary levers available

• ✅ Quick Connect Terminals: Easy installation

• ✅ High Sensitivity & Adjustable Force: Operates from 0.15 Newtons (½ oz) to 4 Newtons (14 oz)

• ✅ Durable Housing: Thermoplastic construction for rugged reliability

• ✅ Agency Certified: CSA, ENEC, UL approved for global use

📊 Specifications Table

⚠️ Common Symptoms (When to Replace / Service)

• Switch fails to actuate or triggers inconsistently

• Electrical contacts burn or corrode

• Device connected to switch does not operate correctly

• Mechanical wear on plunger or lever

• Failure in extreme temperature conditions

❓ Frequently Asked Questions (FAQ)

Q1: What type of switch is this?
➡️ It is a miniature SPDT (1NO/1NC) switch suitable for on/off limits and presence sensing.

Q2: What applications is the V7 switch used in?
➡️ Ideal for pressure and temperature assemblies, HVAC controls, industrial equipment, and precision sensing applications.

Q3: What is the operating force range?
➡️ The switch operates between 0.15N (½ oz) and 4N (14 oz) depending on sensitivity requirements.

Q4: Is it certified for global use?
➡️ Yes, it is CSA, ENEC, and UL certified.

Q5: How is it installed?
➡️ Equipped with quick connect terminals for easy and reliable installation.
