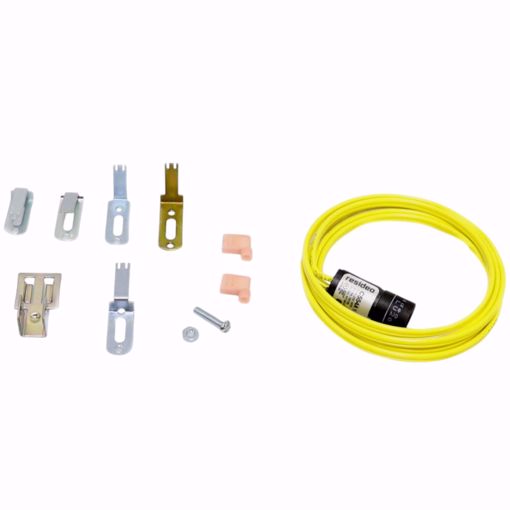

C554A1463 RESIDEO Cadmium-Sulfide Flame Detector – 60" Leads, Type “R” Bracket
Overview
The C554A1463 RESIDEO Flame Detector is a photoconductive cadmium-sulfide (CdS) sensor designed for sequencing oil burner systems. Equipped with 60" leads and multiple mounting brackets, this detector ensures reliable flame sensing and safe burner operation. Its glass-to-metal hermetic seal protects against humidity, soot, and oil fumes, while the replaceable CAD cell makes maintenance simple and cost-effective.
Key Features ✅
-
✅ Photoconductive CdS flame detection ensures accurate sensing
-
✅ Glass-to-metal hermetic seal prevents deterioration
-
✅ Replaceable CAD cell for easy maintenance
-
✅ Multiple mounting options: A, B, E, J, P, and Type “R” brackets
-
✅ 60" lead wires for flexible installation
-
✅ Low power consumption: 12 mA
-
✅ Safe operation up to 140°F ambient temperature
Compatible Burners ✅
R4166, R4184, R8182, R8184, R8185, R8404, R8991, R7997, R7184, R7284
Technical Specifications ⚙️
| Feature | Specification |
|---|
| Type |
Cadmium-Sulfide Flame Detector |
| Mounting |
Type “R” Bracket (includes A, B, E, J, P brackets) |
| Electrical Connections |
NEC Class 1; 2 flag 1/4 in. quick connects |
| Lead Length |
60 in. |
| Power Consumption |
12 mA |
| Ambient Temperature |
Up to 140°F |
| Flame Sensing |
Photoconductive, glass-to-metal hermetic seal |
| Replaceable CAD Cell |
✅ Yes |
Shopping Tips 🛒
-
Ensure your burner model matches the compatible list.
-
The C554A1463 is ideal for safe, reliable oil burner operation.
-
Replace worn or faulty flame detectors promptly to maintain system efficiency.
FAQ ❓
Q: What is the maximum operating temperature?
A: 140°F ambient.
Q: How often should I replace the flame detector?
A: Inspect annually; replace if there are signs of wear, corrosion, or erratic flame sensing.
Q: How do I know when to replace the CAD cell?
A: Replace the CAD cell if flame sensing becomes unreliable, or after repeated lockouts.
Q: Is the lead wire length sufficient for all installations?
A: The unit includes 60-inch leads; ensure this fits your burner setup.
