- Temperature Range Maximum 150 F

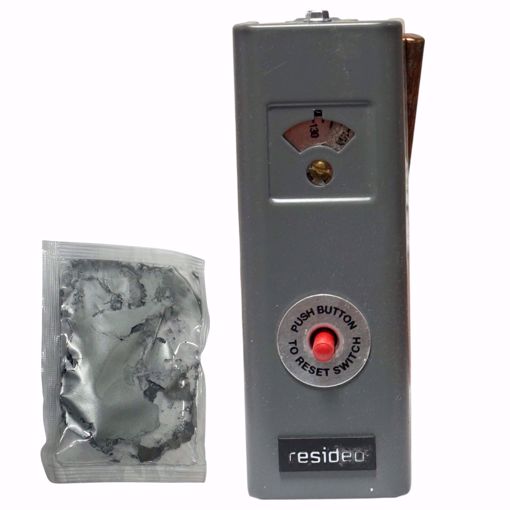

- Includes Heat-conductive compound; Stop factory-set at 250 F (121 C); Well adapter
- Mounting Horizontal or Vertical
- Operating Temperature Range 130 F to 270 F
- Bulb Size (in.)3/8 in. x 2 7/8 in. copper
- Differential Temperature (F) Manual Reset
- Switching Action SPST, contacts break on temperature rise.
- Capillary Length (in.)3 in
Electrical Ratings Millivolt--0.25 A @ 0.25 to 12 Vdc; At Full Load-- 8A @ 120 Vac: 5.1A @ 240 Vac; At Locked Rotor-- 48A @ 120 Vac: 30.6A @ 240 Vac
Features
- Totally enclosed Micro Switch snap-acting switches operate on temperature rise to setpoint.
- Visible control point scale and external adjustment screw permit easy setting.
- Horizontal or vertical insertion of the sensing element.
- Direct or well immersion of the sensing element.
- Models available for strap-on mounting.
- Remote bulb model may be used to sense air temperature in ducts and in outside air sensing applications.
- Select models include heat-conductive compound.
Aquastat Controllers are immersion type devices for limiting or regulating the temperature of liquids in boilers, storage tanks, and other applications where temperature control is required. L4006 are used in applications that utilize the existing wells
