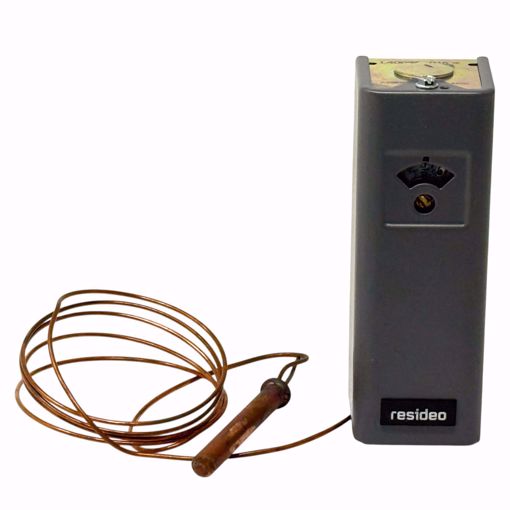

5-30F ADJ DIFFERENTIAL. 5-1/2 FT CAPILLARY.

Manufacturer: Resideo

Temperature Range Ambient 150 F Electrical Rating Millivolt--0.25 A @ 0.25 to 12 Vdc; At Full Load-- 8A @ 120 Vac: 5.1A @ 240 Vac; At Locked Rotor-- 48A @ 120 Vac: 30.6A @ 240 Vac Operating Temperature Range 100 F to 240 F Differential Temperature (F) 5 F to 30 F adj Capillary Length (in.) 66" Switching Action SPST, contacts break on temperature rise. Features - Remote temperature sensing element detects and responds rapidly to temperature changes. - Totally enclosed Single Pole Single Throw (SPST) Micro Switch snap-acting switch. - Visible control point scale and external adjustment screw permit easy setting. - Horizontal and/or vertical mounting of the remote element into boiler, tank, or other container unless otherwise noted. - UL and CSA listed limit device. For limiting or regulating temperature of liquids in boilers or tanks. Can also sense duct or outside air temperature.

SKU: RESIDEO:L4008A1015

Product Availability: 12

$195.22

This product must be purchased in increments of 1

Qty:

i h

Temperature Range Ambient 150 F
Electrical Rating Millivolt--0.25 A @ 0.25 to 12 Vdc; At Full Load-- 8A @ 120 Vac: 5.1A @ 240 Vac; At Locked Rotor-- 48A @ 120 Vac: 30.6A @ 240 Vac
Operating Temperature Range 100 F to 240 F
Differential Temperature (F) 5 F to 30 F adj
Capillary Length (in.) 66"
Switching Action SPST, contacts break on temperature rise.

Features
- Remote temperature sensing element detects and responds rapidly to temperature changes.
- Totally enclosed Single Pole Single Throw (SPST) Micro Switch snap-acting switch.
- Visible control point scale and external adjustment screw permit easy setting.
- Horizontal and/or vertical mounting of the remote element into boiler, tank, or other container unless otherwise noted.
- UL and CSA listed limit device.

For limiting or regulating temperature of liquids in boilers or tanks. Can also sense duct or outside air temperature.

Products specifications

Manufacturer	Resideo
