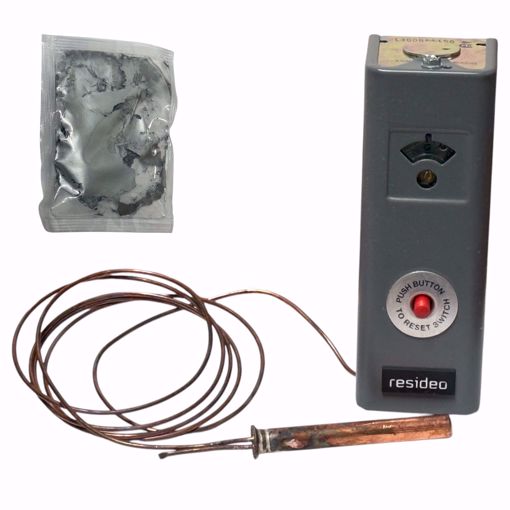

AQUASTAT. BREAK ON RISE. MANUAL RESET. 130-270F. STOP 250F.

Manufacturer: Resideo

- Temperature Range Maximum Ambient 150 F - Includes5 1/2 ft (1.7 m) capillary; Stop factory-set at 250 F (121 C); Heat-conductive compound. - Mounting Horizontal or Vertical - Operating Temperature Range 130 F to 270 F - Bulb Size (in.) 3/8 in. x 2 7/8 in. copper - Differential Temperature Manual reset - Switching Action SPST, contacts break on temperature rise. - Capillary Length (in.) 66 in. Electrical Ratings Millivolt--0.25 A @ 0.25 to 12 Vdc; At Full Load-- 8A @ 120 Vac: 5.1A @ 240 Vac; At Locked Rotor-- 48A @ 120 Vac: 30.6A @ 240 Vac Features - Remote temperature sensing element detects and responds rapidly to temperature changes. - Totally enclosed Single Pole Single Throw (SPST) Micro Switch snap-acting switch. - Visible control point scale and external adjustment screw permit easy setting. - Horizontal and/or vertical mounting of the remote element into boiler, tank, or other container unless otherwise noted. For limiting or regulating temperature of liquids in boilers or tanks. Can also sense duct or outside air temperature.

SKU: RESIDEO:L4008E1156

Product Availability: 5

$241.84

This product must be purchased in increments of 1

Qty:

i h

- Temperature Range Maximum Ambient 150 F
- Includes5 1/2 ft (1.7 m) capillary; Stop factory-set at 250 F (121 C); Heat-conductive compound.
- Mounting Horizontal or Vertical
- Operating Temperature Range 130 F to 270 F
- Bulb Size (in.) 3/8 in. x 2 7/8 in. copper
- Differential Temperature Manual reset
- Switching Action SPST, contacts break on temperature rise.
- Capillary Length (in.) 66 in.

Electrical Ratings Millivolt--0.25 A @ 0.25 to 12 Vdc; At Full Load-- 8A @ 120 Vac: 5.1A @ 240 Vac; At Locked Rotor-- 48A @ 120 Vac: 30.6A @ 240 Vac

Features
- Remote temperature sensing element detects and responds rapidly to temperature changes.
- Totally enclosed Single Pole Single Throw (SPST) Micro Switch snap-acting switch.
- Visible control point scale and external adjustment screw permit easy setting.
- Horizontal and/or vertical mounting of the remote element into boiler, tank, or other container unless otherwise noted.

For limiting or regulating temperature of liquids in boilers or tanks. Can also sense duct or outside air temperature.

Products specifications

Manufacturer	Resideo
