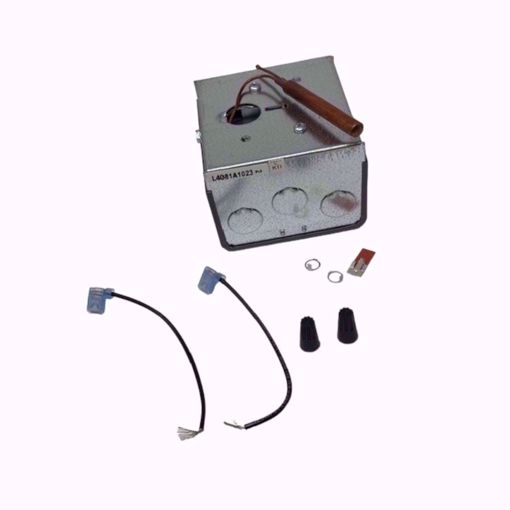

DUAL AQUASTAT. HI LIMIT 130-240F. LO LIMIT 110 TO 220F. 10-2

Manufacturer: Resideo

- Temperature Range Maximum 150 F at switches; 265 F at sensing element - Mounting Horizontal - Operating Humidity Range (% RH) 0 to 95% RH, non-condensing - Operating Temperature Range High Limit-- 130 F to 240 F; Low Limit-- 110 F to 220 F - Differential Temperature High limit : 10 F fixed; low limit: 10-25 F adj. - Switching Action SPST: High & Low Limit - Well Spud Size (in.) 3/4 in. - Insulation Depth (in.) 1 1/2 in - Electrical Ratings, Ignition Transformer Load: 360 VA Electrical Ratings 0.25 A @ 0.25 to 12 Vdc; At Full Load-- 8A @ 120 Vac: 5.1A @ 240 Vac; At Locked Rotor-- 48A @ 120 Vac: 30.6A @ 240 Vac Features - An immersion type liquid-filled sensing element actuates two snap switches. - One switch operates as a high limit control. - The other switch operates as a low limit and/or circulator control, depending on the model. - Controller may be mounted in any positioning and needs no leveling. - Separate, easy-to-read, calibrated dial and setpoint adjustments for each switch. - Differential adjustment on low limit or circulator switch on select models. - All adjustments accessible inside front cover. - Push-in terminals for quick connecting. - Single sensing element for easy installation. - Two SPST snap switches act independently at respective temperature settings.. High limit, low limit and/or circulator controllers used to regulate boiler water temperature in gas- or oil-fired hydronic heating systems.

SKU: RESIDEO:L4081A1023

Product Availability: 4

$325.43

This product must be purchased in increments of 1

Qty:

i h

- Temperature Range Maximum 150 F at switches; 265 F at sensing element
- Mounting Horizontal
- Operating Humidity Range (% RH) 0 to 95% RH, non-condensing
- Operating Temperature Range High Limit-- 130 F to 240 F; Low Limit-- 110 F to 220 F
- Differential Temperature High limit : 10 F fixed; low limit: 10-25 F adj.
- Switching Action SPST: High & Low Limit
- Well Spud Size (in.) 3/4 in.
- Insulation Depth (in.) 1 1/2 in
- Electrical Ratings, Ignition Transformer Load: 360 VA

Electrical Ratings 0.25 A @ 0.25 to 12 Vdc; At Full Load-- 8A @ 120 Vac: 5.1A @ 240 Vac; At Locked Rotor-- 48A @ 120 Vac: 30.6A @ 240 Vac

Features
- An immersion type liquid-filled sensing element actuates two snap switches.
- One switch operates as a high limit control.
- The other switch operates as a low limit and/or circulator control, depending on the model.
- Controller may be mounted in any positioning and needs no leveling.
- Separate, easy-to-read, calibrated dial and setpoint adjustments for each switch.
- Differential adjustment on low limit or circulator switch on select models.
- All adjustments accessible inside front cover.
- Push-in terminals for quick connecting.
- Single sensing element for easy installation.
- Two SPST snap switches act independently at respective temperature settings..

High limit, low limit and/or circulator controllers used to regulate boiler water temperature in gas- or oil-fired hydronic heating systems.

Products specifications

Manufacturer	Resideo
