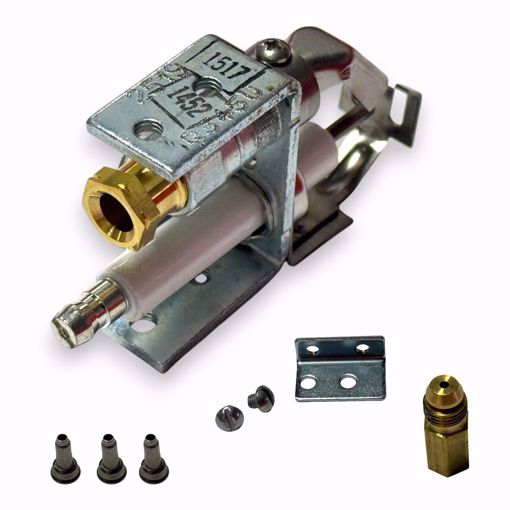

UNIVERSAL INTERMITTENT PILOT BURNER FOR NATURAL AND LP GAS W

Manufacturer: Resideo

Includes - BCR-20 Orifice (0.020") - BCR-18 Orifice (0.018") - BBR-12 Orifice (0.012") - BBR-11 Orifice (0.010") - Adjustable tip style, 1/4 in. and 1/8 in. compression fittings - Single Rod - Tip Style Single - Direction of Front Tip Adjustable Left, Right, and Center - Pilot Btuh 1000 Btuh Used With S8600F, S8600H, S8600M, S8610F, S8610H, S8610M, S8610U, S8660D, S8660E, S8670D, S8670E Features - Includes pilot burner with bracket, ceramic-insulated Kanthal flame rod/spark igniter and ground strap - Single tip style - Three position adjustable hood to provide desired flame pattern - Natural and LP orifices Non primary-aerated combination pilot burner and ignitor. Used with the S86, S860, S8610, or S8670 in intermittent pilot systems.

SKU: RESIDEO:Q345U1005

Product Availability: 12

$81.89

This product must be purchased in increments of 1

Qty:

i h

Includes
- BCR-20 Orifice (0.020")
- BCR-18 Orifice (0.018")
- BBR-12 Orifice (0.012")
- BBR-11 Orifice (0.010")
- Adjustable tip style, 1/4 in. and 1/8 in. compression fittings

- Single Rod
- Tip Style Single
- Direction of Front Tip Adjustable Left, Right, and Center
- Pilot Btuh 1000 Btuh

Used With S8600F, S8600H, S8600M, S8610F, S8610H, S8610M, S8610U, S8660D, S8660E, S8670D, S8670E

Features
- Includes pilot burner with bracket, ceramic-insulated Kanthal flame rod/spark igniter and ground strap
- Single tip style
- Three position adjustable hood to provide desired flame pattern
- Natural and LP orifices

Non primary-aerated combination pilot burner and ignitor. Used with the S86, S860, S8610, or S8670 in intermittent pilot systems.

Products specifications

Manufacturer	Resideo
