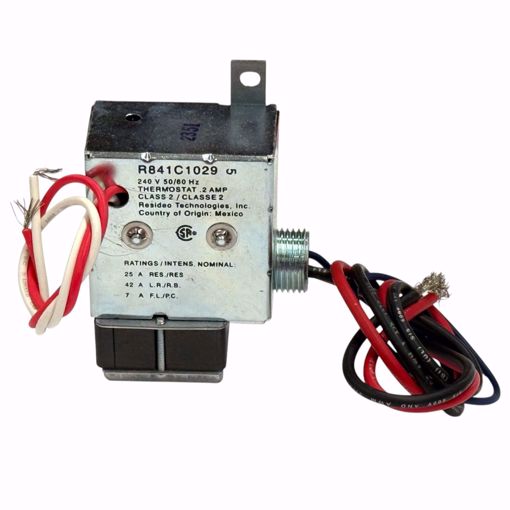

ELECTRIC HEAT RELAY WITH BUILT-IN TRANSFORMER 240/24V

Manufacturer: Resideo

- 240V - 50/60Hz - Temperature Ratings -20 F to +150 F - Contact Ratings (AFL) 7.0 A @ 208 Vac, 240 Vac, 277 Vac; 14 A @ 120 Vac - Contact Ratings (ALR) 42 A @ 208 Vac, 240 Vac, 277 Vac; 84 A @ 120 Vac - Contact Ratings (resistive) 22 A @ 120 Vac, 208 Vac, 240 Vac; 19 a @ 277 Vac Features - Operate with each cycle of the thermostat (4 to 6 cycles per hour). - Each relay switches up to a 5,000 W load. - Contacts make and break in about 75 seconds. - Mount in any position. - Includes 1/2 in. (13 mm) male conduit bushing. Use with two-wire, 24 Vac thermostat to control electric heating equipment such as baseboard, ceiling cable and duct heaters.

SKU: RESIDEO:R841C1029

Product Availability: 13

$104.46

This product must be purchased in increments of 1

Qty:

i h

- 240V
- 50/60Hz
- Temperature Ratings -20 F to +150 F
- Contact Ratings (AFL) 7.0 A @ 208 Vac, 240 Vac, 277 Vac; 14 A @ 120 Vac
- Contact Ratings (ALR) 42 A @ 208 Vac, 240 Vac, 277 Vac; 84 A @ 120 Vac
- Contact Ratings (resistive) 22 A @ 120 Vac, 208 Vac, 240 Vac; 19 a @ 277 Vac

Features
- Operate with each cycle of the thermostat (4 to 6 cycles per hour).
- Each relay switches up to a 5,000 W load.
- Contacts make and break in about 75 seconds.
- Mount in any position.
- Includes 1/2 in. (13 mm) male conduit bushing.

Use with two-wire, 24 Vac thermostat to control electric heating equipment such as baseboard, ceiling cable and duct heaters.

Products specifications

Manufacturer	Resideo
