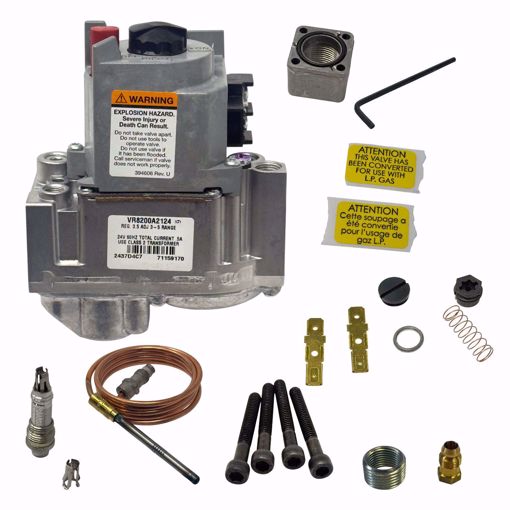

STANDING PILOT GAS VALVE. STANDARD OPENING. 1/2 X 1/2 REG SE

Includes - One 3/4" straight flange - One 1/2" x 3/8" reducer bushing - Q340 Thermocouple; Natural to LP conversion kit Mounting 0 to 90 degrees in any direction from the upright position of the gas control knob, including vertically. - 24V - 60Hz - Operating Temperature Range 0 F to 175 F - Straight-through - Pressure Ratings (psi) 1/2 PSI - Pressure Ratings (kPa) 3.5 kPa - Inlet/Outlet Size (in.) 1/2 in. x 1/2 in. - Pilot Gas Outlet Compression fitting for 1/4 in. OD tubing - Pressure Tapping 1/8 in. NPT with plug - Type of Fuel Natural (LP with included conversion kit) - Pressure Regulator Setpoint (in. wc) 3.5 in. WC - Pressure Regulator Setpoint (kPa) 0.87 kPa Capacity (kBtuh) At 1 in. wc p.d.-- 130,000 BTUh: 20,000 BTUh minimum: 200,000 BTUh maximum Natural Gas Features - Control includes safety shutoff, manual valve, two automatic operators, pressure regulator and pilot adjustment. - Compact size. - Provides two automatic valves. - Solenoid operated first automatic valve opens on thermostat call for heat, closes when call for heat ends. - Diaphragm-operated second automatic valve opens under control of regulator; closes if gas or power supply is interrupted. - Meets codes requiring dual safety shut-off. - Natural to LP and LP to Natural conversion kits available for standard and slow opening gas valves. - All adjustments, wiring connections and pilot outlet are accessible from top of control. - Adjustable servo regulator effectively maintains almost constant gas output pressure under wide fluctuations in gas supply pressure. - Compatible with ECO connector. - LITE-RITE (OFF-PILOT-ON) lighting sequence. Combination gas control for use in 24 Vac gas-fired, standing pilot appliances with capacities from 30 to 300 cfh. Single Stage, 24 Vac, Standard Opening, Standing Pilot Gas Valve. 1/2 x 1/2". Set 3.5" WC
