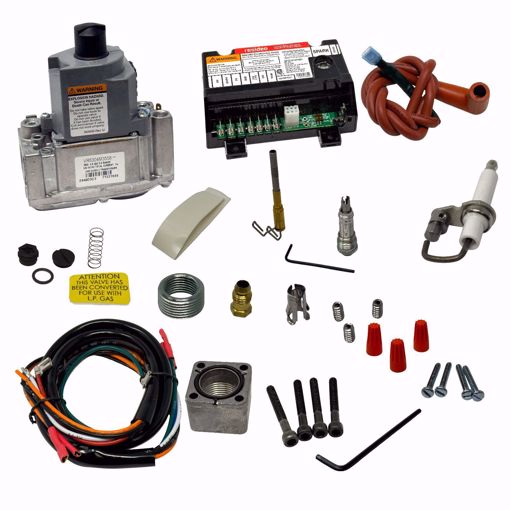

VR8304M 3558 COMBINATION GAS CONTROL 1/2 IN X 3/4 IN STRAIGH

- 24 VAC - 60Hz - Flame Failure Response Time (sec) 2.0 sec - PrePurge 0 or 30 seconds - Ambient Temperature Range -40 F to to 165 F - Ignition Sequence Continuous retry, after trial for ignition, pilot gas shuts off for 5 minutes, then another trial for pilot ignition takes place - Typical Gas Control VR8204, VR8304 - Type of Gas Natural or LP - Flame Sense Single Rod or Two Rods - Ignition Source Internal high voltage spark generator - Ignition Trials To Lockout Continuous retry - Lockout Timing 15 or 90 seconds - Ignition Trial Time (sec) 15 or 90 seconds - Maximum Valve Load @ 24 Vac (Amps) 1A Pilot, 2A Main @ 24Vac - Typical Ignition Hardware Q345, Q3451 - Includes VR8304M3558 (1/2 x 3/4; 3.5" setting; 270kBtu/hr at 1 in. p.d.) Features - Use with natural or LP gas - Includes gas valve, ignition module, pilot burner hardware, ignition cable, and wiring harness - Provides 100 percent pilot gas shutoff if pilot fails to light; after 6-minute delay, trial for ignition is repeated. - Ignition trail/delay sequence is repeated until the appliance lights or call for heat is removed.. Intermittent Pilot Retrofit Kits save energy by converting atmospheric standing pilot systems to intermittent pilot. Typical applications are gas-fired atmospheric furnaces, boilers and heating appliances.
