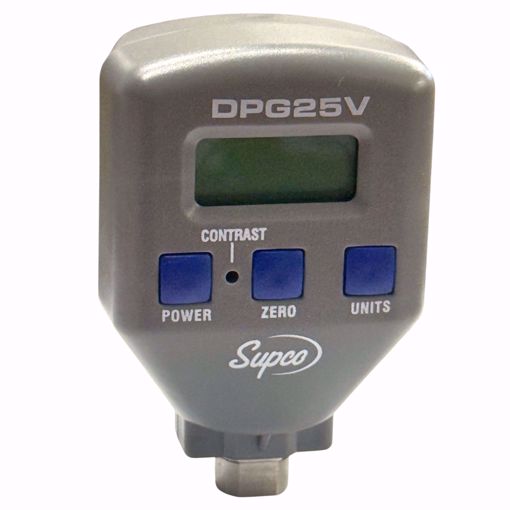

DPG25V SUPCO DIGITAL PRESSURE GAUGE
Specs
- Pressure Range: -14.5 to 25 PSI
- Accuracy: < ± 0.5% Full Scale
- Stability: ± 0.25% Full Scale
- Overage Protection: 2X Rated Pressure
- Operating Temperature Range: 32°F to 130°F (0°C to 55°C)
- Storage Temperature Range: -40°F to 150°F (-40°C to 65°C)
- Power: 9 Volt Alkaline Battery (not included)
- Automatic Power Off: 1 Hour
- Battery Life: 100 Hours Continuous operation (approx.)
- Update Rate: 3 Samples per second
Features/Benefits
- 1 Hour auto off
- 1 year warranty
- 1/8" NPT Female Connection
- Easy to use
- High accuracy
- Long battery life
- Measurement units PSI, InHg
- No welds or "O" Rings
- Stainless steel sensor
The DPG series of digital pressure gauges feature multiple units, selectable zero reference, and automatic power off to conserve battery power. The DPG25V can be used with any media compatible with 17-4PH stainless steel.
