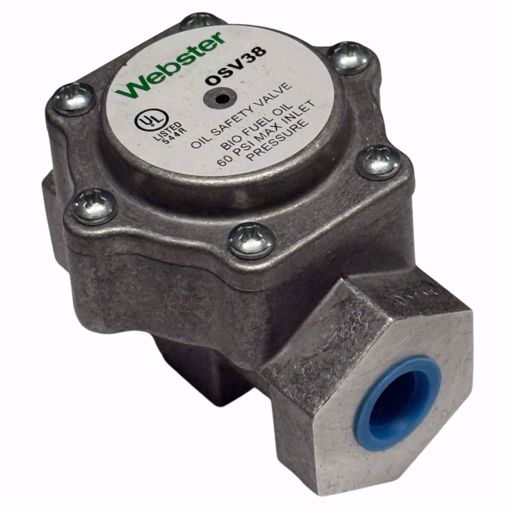

3/8 INCH OIL SAFETY VALVE RATED FOR #2 ,BIO & WASTE OIL

Manufacturer: Webster

OSV38 WEBSTER 3/8 INCH OIL SAFETY VALVE RATED FOR #2 ,BIO & WASTE OIL - Flow Rate 55 GPH - 60 PSI Max Inlet Pressure - 3/8" - Temp Range 0 to 160 F - The OSV can be mounted in any position - This item replaces: PRV-38 The Webster OSV provides important protection in oil burner supply systems with pressurized supply lines. By isolating burner fuel units from supply line pressure sources (a supply pump or overhead tank, for example), the OSV relieves pressure stain on fuel unit inlets and seals. For this application, the OSV is installed close to the burner assembly. A sustained vacuum at the outlet side of the OSV, generated by fuel unit operation, causes the valve to open. The OSV operates as a pressure reducer, with supply line pressure on the valve inlet side and fuel pump vacuum on the valve outlet side.

SKU: WEBSTER:OSV38

Product Availability: 7

$120.68

This product must be purchased in increments of 1

Qty:

i h

OSV38 WEBSTER 3/8 INCH OIL SAFETY VALVE RATED FOR #2 ,BIO & WASTE OIL

- Flow Rate 55 GPH
- 60 PSI Max Inlet Pressure
- 3/8"
- Temp Range 0 to 160 F
- The OSV can be mounted in any position
- This item replaces: PRV-38

The Webster OSV provides important protection in oil burner supply systems with pressurized supply lines.

By isolating burner fuel units from supply line pressure sources (a supply pump or
overhead tank, for example), the OSV relieves pressure stain on fuel unit inlets and seals.
For this application, the OSV is installed close to the burner assembly. A sustained vacuum at the outlet side of the OSV, generated by fuel unit operation, causes the valve to open.

The OSV operates as a pressure reducer, with supply line pressure on the valve inlet side and fuel pump vacuum on the valve outlet side.
