🛠️ T11 Westwood Fitz-All Oil Burner Pump Tester
🔍 Product Overview
The T11 Westwood Fitz-All Pump Tester is a professional-grade oil burner pump testing kit designed for technicians and service professionals.
It allows for accurate pressure and cut-off testing on a wide variety of oil burners without disconnecting fuel lines, saving time and improving safety.

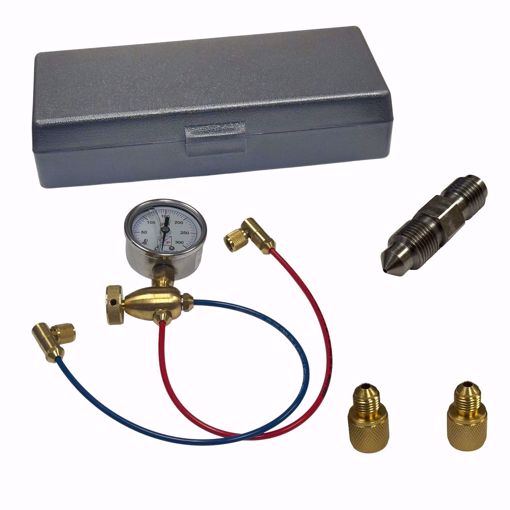

The kit includes flexible color-coded high-pressure hoses, quick-connect fittings, and a stainless steel liquid-filled gauge (0–300 PSI) for precise readings. Adaptors for Beckett, Riello, and other popular burners are included, making it an all-in-one solution for residential and commercial service applications.
Housed in a rugged, service-truck-ready carrying case, the T11 pump tester is ideal for field service or shop use.
✅ Key Features
✔️ Complete oil burner pump tester with carrying case, adaptors, and instructions
✔️ Angle connector for hard-to-reach Beckett pump connections
✔️ Quick-connect fittings with built-in seals – finger-tight installation
✔️ Super flexible, micro-diameter, color-coded high-pressure hoses
✔️ Fits standard 3/16" flare nozzle line fittings
✔️ Includes adaptors for 1/4" flare nozzle lines and Riello pumps (European threads)
✔️ Stainless steel liquid-filled gauge – 0 to 300 PSI
✔️ Switch between pressure measurement and cut-off test without disconnecting fuel lines
✔️ Rugged, service-truck-ready carrying case with easy-to-follow instructions
✔️ Compatible with popular burners, including Beckett, Burnham AFG, NX, and Riello
⚙️ Technical Specifications
| Specification | Details |
|---|
| Model |
T11 Fitz-All Pump Tester |
| Gauge Type |
Stainless Steel Liquid-Filled |
| Gauge Range |
0–300 PSI |
| Hose Type |
Micro-diameter, flexible, color-coded |
| Fittings |
Quick-connect with built-in seals |
| Burner Compatibility |
Beckett, Burnham AFG/NX, Riello (with adaptors) |
| Nozzle Line Fittings |
3/16" standard, 1/4" adaptors included |
| Functions |
Pressure measurement, cut-off test (Beckett only) |
| Case |
Rugged, service-truck-ready carrying case |
| Includes |
Adaptors for Riello and 1/4" fittings, instructions |
⚠️ Common Use Cases / Symptoms
Use the T11 Pump Tester to diagnose:
-
🔸 Low or fluctuating oil pressure at the nozzle
-
🔸 Burner lockouts or ignition failure
-
🔸 Fuel pump leaks or irregular flow
-
🔸 Inconsistent or weak flame
-
🔸 Troubleshooting high- or low-pressure issues without disassembly
❓ (FAQ) Frequently Asked Questions
Q: Can I use this tester on Riello pumps?
A: Yes — adaptors for European-thread Riello pumps are included. However, cut-off testing is not supported for Riello pumps.
Q: Do I need tools to connect the hoses?
A: No — quick-connect fittings require only finger tightening.
Q: What pressure range does the gauge measure?
A: The liquid-filled stainless steel gauge measures 0–300 PSI.
Q: Can I test both pressure and cut-off on Beckett pumps?
A: Yes — simply turn the knob to select between pressure measurement and cut-off test.
Q: Is this kit portable?
A: Absolutely — it comes in a rugged, service-truck-ready carrying case with all hoses and adaptors neatly stored.
🛒 Shopping Tips
-
✅ Ensure compatibility with your burner type before testing.
-
✅ Use the angle connector for hard-to-reach Beckett pumps.
-
✅ Finger-tighten all quick-connect fittings to avoid leaks.
-
✅ Use the color-coded hoses to avoid confusion between pressure and return lines.
-
✅ Always follow the included instructions for safety and accurate readings.
