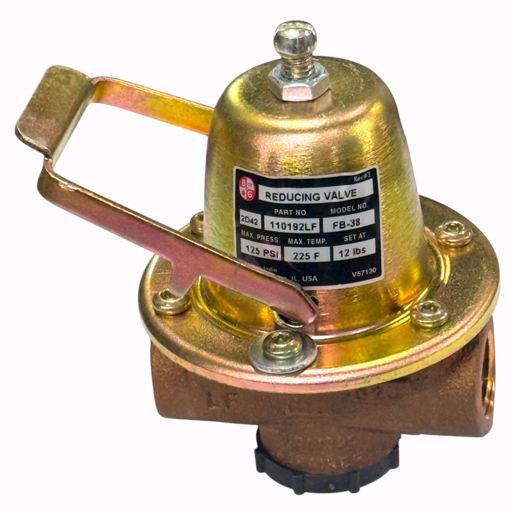

110192LF Bell & Gossett 110192 FB-38 Lead Free Pressure Reducing Valve 1/2" FNPT With Fast Fill Feature

Manufacturer: Bell & Gossett

Bell & Gossett 110192 FB-38 Lead Free Pressure Reducing Valve 1/2" FNPT With Fast Fill Feature - Model # FB-38 - Part # 110192 LF - Size 1/2" - Pressure 10 to 25 PSIG - Pressure Set Point Factory 12 PSIG - Max Inlet Pressure 125 PSI - Max Temp Range 225 F Replaces Sid Harvey B138-4R The Bell & Gossett Pressure Reducing Valve is designed for filling hot water boilers and associated piping systems to a properly controlled pressure after boiler installation or system servicing B & G reducing valves protect heating and plumbing systems against excessive line pressures. They are factory set at specified limits although adjustment is easily made. Equipped with built-in-strainer and low inlet pressure check valve. Tail piece for union models is combination 1/2" cooper sweat and 1/2" male NPT

SKU: BELL & GOSSETT:110192LF

Product Availability: 1

$90.89

This product must be purchased in increments of 1

Qty:

i h

Bell & Gossett 110192 FB-38 Lead Free Pressure Reducing Valve 1/2" FNPT With Fast Fill Feature

- Model # FB-38
- Part # 110192 LF
- Size 1/2"
- Pressure 10 to 25 PSIG
- Pressure Set Point Factory 12 PSIG
- Max Inlet Pressure 125 PSI
- Max Temp Range 225 F

Replaces Sid Harvey B138-4R

The Bell & Gossett Pressure Reducing Valve is designed for filling hot water boilers and associated piping systems to a properly controlled pressure after boiler installation or system servicing

B & G reducing valves protect heating and plumbing systems against excessive line pressures. They are factory set at specified limits although adjustment is easily made. Equipped with built-in-strainer and low inlet pressure check valve. Tail piece for union models is combination 1/2" cooper sweat and 1/2" male NPT

Products specifications

Manufacturer	Bell & Gossett
