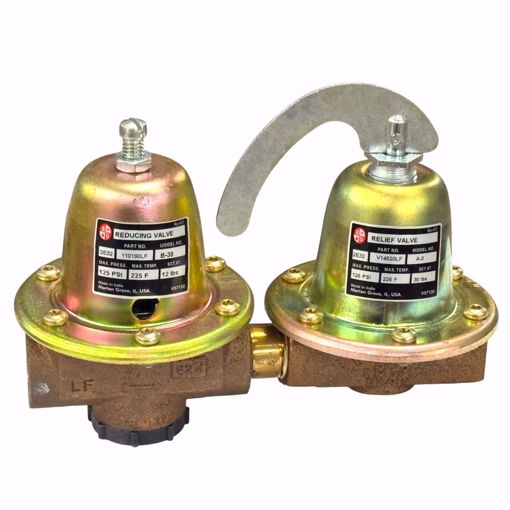

110199LF Bell & Gossett Lead Free 1/2" Model 8 Dual Unit Pressure Reducing and Pressure Relief Valve Set @ 12 PSIG and Relief Valve Set @ 30 PSIG.
- Connection Size 1/2"
- Pressure Range 10 to 25 psig
- Operating Pressure Range 10 to 125 psi
- Body Material Brass
- Max Temp 225 F
- Connection Type Threaded
- Factory Set Pressure 12 psig
- Between connections 6-7/16"
Replaces 110199
Contains Valves
B & G V14620LF Relief Valve
- Model # A-3
- Max Pressure 125 psi
- Max Temp 225 F
- Factory set at 30 psig
B & G Reducing Valve 110190LF
- Model # B-38
- Max Pressure 125 psi
- Max Temp 225 F
- Factory set at 12 psig
Replaces
Bell & Gossett 110199, Sid Harvey B138-1 and B138-1R, Bell & Gossett 110022 and 110032.
Combination (Dual Unit) Valves combine the functions of pressure reducing (fill) valve and a non-code pressure reducing relief valve. Both Valves are equipped with an EPDM diaphragm. The diaphragm operated relief valve operates with a low differential between opening and closing pressures. The diaphragm operated pressure reducing valve is equipped with an inlet strainer and built-in low inlet pressure check valve.
