B & G MOTOR 1/12 HP 115 VOLT 1725 RPM FOR SERIES

Manufacturer: Bell & Gossett
111034 BELL & GOSSETT B & G MOTOR 1/12 HP 115 VOLT 1725 RPM FOR SERIES - 1/12 HP - 1725 RPM - 1 Phase - 60CY - 115 V - 1.75 Amps - CONT Rating 40 C - 60Hz - Used with Series 100 Pumps - Ambient Temp Range 32 to 104 F - Motor Thermal Protection Auto Includes Bell & Gossett L23401 Small Oil Tube 118153 - Helps Pumps: Series 100, Series 1510, Series 1522, Series 2, Series 2-1/2, Series 60, Series HD3, Series HV, Series LD3, Series PD, Series PR, Series VSC/VSCS - Lubricant for pumps & motors - 1-1/2oz Replaces Bell & Gossett M09181, M09186, P-115Z-3, P115Z-3, P-115-Z-3, MOT101-5, MOT112-5, MOT113-5, MOT132-5, MOT133-5, M09180 Armstrong 805316-010, Sid Harvey A28-15 and A28-15R Bell & Gossett 1/12 HP, 115 volt, single phase, 1725 RPM, oil-lubricated motor for B&G series 100 pumps. This motor features a two-piece motor bracket, for easy service, sleeve bearings, and replaceable, resilient motor mounts. A modern, built-in thermal overload protector shuts the motor off if it overheats.

***Motor Lubrication Lubricate at installation or start of each heating season for continuous service. Lubricate every 3 months with SAE # 20 Oil. Use approx., 1/8 oz. Do not over oil. For Indoor Use Only***

SKU: BELL & GOSSETT:111034
Product Availability: 1
$506.22
This product must be purchased in increments of 1
i h

111034 BELL & GOSSETT B & G MOTOR 1/12 HP 115 VOLT 1725 RPM FOR SERIES

- 1/12 HP
- 1725 RPM
- 1 Phase
- 60CY
- 115 V
- 1.75 Amps
- CONT Rating 40 C
- 60Hz
- Used with Series 100 Pumps
- Ambient Temp Range 32 to 104 F
- Motor Thermal Protection Auto

Includes Bell & Gossett L23401 Small Oil Tube 118153
- Helps Pumps: Series 100, Series 1510, Series 1522, Series 2, Series 2-1/2, Series 60, Series HD3, Series HV, Series LD3, Series PD, Series PR, Series VSC/VSCS
- Lubricant for pumps & motors
- 1-1/2oz

Replaces Bell & Gossett M09181, M09186, P-115Z-3, P115Z-3, P-115-Z-3, MOT101-5, MOT112-5, MOT113-5, MOT132-5, MOT133-5, M09180 Armstrong 805316-010, Sid Harvey A28-15 and A28-15R

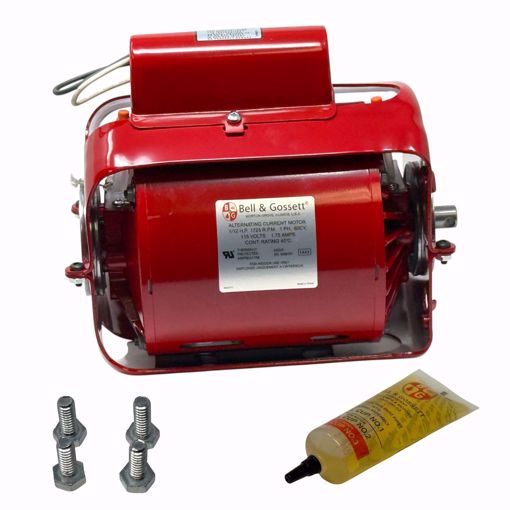

Bell & Gossett 1/12 HP, 115 volt, single phase, 1725 RPM, oil-lubricated motor for B&G series 100 pumps. This motor features a two-piece motor bracket, for easy service, sleeve bearings, and replaceable, resilient motor mounts. A modern, built-in thermal overload protector shuts the motor off if it overheats.

***Motor Lubrication
Lubricate at installation or start of each heating season for continuous service. Lubricate every 3 months with SAE # 20 Oil. Use approx., 1/8 oz. Do not over oil.

For Indoor Use Only***

Products specifications
Manufacturer Bell & Gossett
