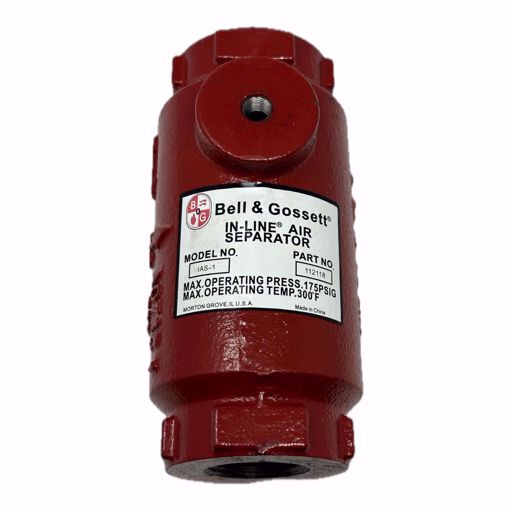

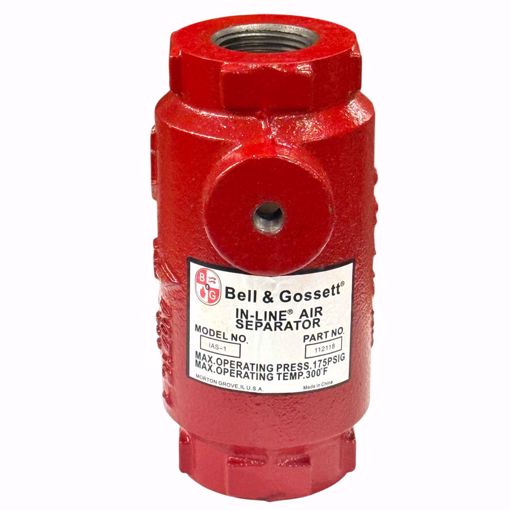

Bell & Gossett 112118 IAS-1 Inline Air Separator 1" NPT With 1/8" Vent Tapping
- Model # IAS−1
- Part # 112118
- 1" NPT
- Vent Tapping 1/8"
- Max Flow GPM 15 (0.95)
Construction
- One Piece Cast Iron
Maximum Operational Limitations
Working Pressure 175 PSIG (12.1 Bar)
Temperature 300 F
FEATURES AND BENEFITS
• One piece cast iron construction
• Efficiently separates air
• Never requires servicing
• No moving parts
• Compact design
• Easily installed The B&G In-Line Air Separator is specifically designed to efficiently separate air from circulating water in hydronic heating and cooling systems to assure quiet operation. MODEL # IAS400-1
B&G In-Line Air Separator Fittings are designed to effectively separate free air in hydronic heating/cooling systems. The air separators are constructed of a single piece cast iron material with an integral weir, designed to decelerate system flow to maximize air separation.
