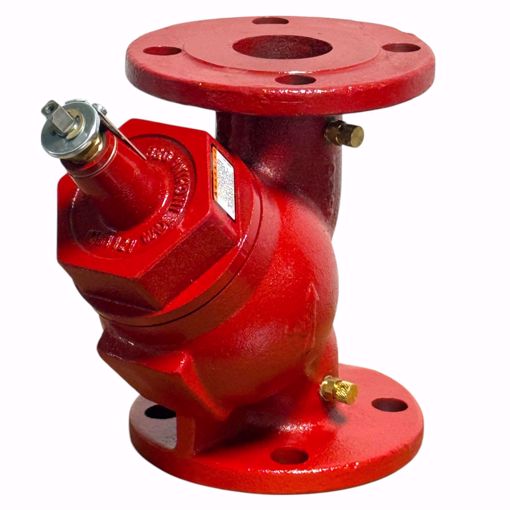

BELL & GOSSETT 2 TRIPLE DUTY VALVE

132121 BELL & GOSSETT 2" TRIPLE DUTY VALVE - Flange Size 2" - Model # 3DS-2S - Max Recommended Flow GPM 275 GPM - Max Working Pressure 175 PSIG (1,207 kPa) - Max Operating Temp 250 F (121 C) - Body Cast Iron with Bronze Seat - Connection Method Flanged - Body Pattern Straight Features • Lowest pressure drops. • 3-Valves in one; center guided non-slam check, calibrated balance and shut-off. • Maximum range of control (8-9 turns). • Spring loaded with "soft seat" design. • Brass seat, stainless steel steam and bronze disc. • Brass read-out valves. • Calibrated nameplate & memory button. • Backseating valve stem. • Available in flanged, grooved and NPT connections. • Minimizes cost and reduces installation time. • Meets ASHRAE 90.1 requirements by providing most energy efficient operation of any similar The Triple Duty Valve is a quiet operating heavy-duty valve which performs all of the functions normally required on the discharge side of hydronic system pumps. The valve serves as a non-slam check valve as needed for zoned pumping, parallel and standby pumping, and condenser water applications. The spring-loaded disk prevents valve chatter and assures positive shutoff. Bell & Gossett's Triple Duty Valve has a calibrated nameplate for rough system balance. The Triple Duty Valve is also equipped with Model RV-125A brass readout valves for more accurate system balance. The calibrated nameplate allows the valve to be returned to the original balance position after shutoff. To repack under system pressure, turn the valve stem to the fully open position. Turning the valve stem to the closed position provides shutoff. BELL & GOSSETT 3DS-2S, 2” TRIPLE DUTY VALVE STRAIGHT PATTERN (LESS FLANGES) A combination shut-off, center-guided non-slam check valve and calibrated balance valve in one device. The combination of three valves in one minimizes cost and reduces installation time. Available in angle or straight pattern in 1' through 16' sizes; in flanged, grooved or NPT connections. The triple-duty valve has a cast iron body, brass seat, cast bronze disc and SS stem. A calibrated nameplate and memory button allow return of the valve to the balanced position after shut-off. The back seating valve stem allows repacking under full-line pressure.
