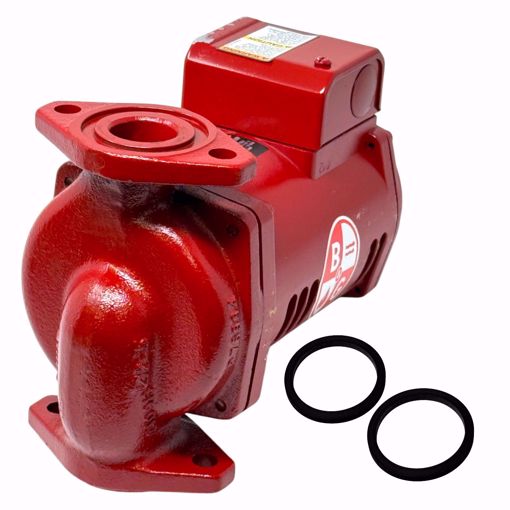

1BL012 BELL & GOSSETT PL-30 IRON BODY CIRCULATOR(LESS

1BL012 Bell & Gossett PL-30 Cast Iron Circulator (LESS FLANGES) 1/12 HP 115V - Model# PL-30 - 115V - 60Hz - 1 Phase - 160 Watts - 1.4 Amps - Max Liquid Temp 225 F - Max Pressure 150 PSI (10 Bar) - 2650 RPM - 1/12 HP - Body Material Cast Iron - Max Flow GPM 30 gpm - Max Head (Ft) 25 Ft - Head Range (ft) 0 to 25 Ft - Pump Type Booster Pump Pump Connection Size - 3/4", 1", 1-1/4", 1-1/2" Includes B & G Flange Gasket Set - B & G 118368 Benefits - A powerful, dry-motor design offers 25% more efficiency than the competition. Unlike a wet rotor, the Series PL does not need to bypass system water through the motor to lubricate and cool the bearings - The PL's advanced close-coupled design increases pump life and efficiency. - The Series PL's stabilized heat-resistant, non-metallic impeller with a closed design improves overall operating efficiency. - Permanently oil lubricated - Double sided stainless steel neck ring for optimum efficiency Features and Benefits - B&G’s powerful, dry-motor design delivers exceptional performance 25% more efficient than competition - Precision-machined and balanced alloy steel rotor for superior performance. - Solid “Stiff-Shaft” design is constructed of high-strength alloy steel impervious to cracking caused by thermal stresses. XL-11™ - Precision-Crafted Bearing System Permanently oil lubricated - Completely maintenance free Advanced close-coupled design increases pump life and efficiency, assures dependable seasonal start-ups and can easily handle difficult water conditions - Tough, durable seal system features a carbon/silicon carbide seal on a stainless-steel shaft sleeve for long life and rugged operation - Double-sided stainless-steel neck ring for optimum efficiency. The Series PL close coupled booster pumps are specifically designed for quiet operation in hydronic, radiant and geothermal heating and cooling systems. These inline permanently lubricated pumps are available in cast iron or lead-free† bronze body construction.
