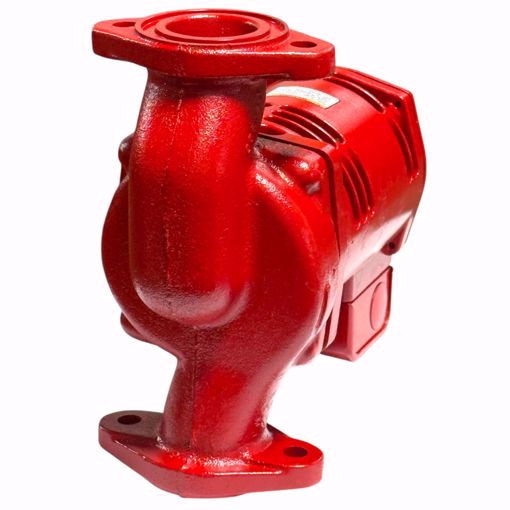

1BL016 BELL & GOSSETT PL-50 IRON BODY CIRCULATOR FLANG

Manufacturer: Bell & Gossett

1BL016 BELL & GOSSETT PL-50, IRON BODY CIRCULATOR, FLANGES (LESS FLANGES), 1/6 HP, 115 VOLTS - Model # PL-50 - 115V - 60Hz - 1 Phase - 190 Watts - 1.8 Amps - Body Material Cast Iron - Flow Range (GPM) 0 to 70 gpm - Head Range (Ft) 0 to 18 Ft - 1/6 HP - Max Temp 225 F - Max Pressure 150 psi (10 bar) - 3300 RPM - Max Flow (GPM) 70 gpm Connection Size - 1" / 1-1/4", 1-1/2" Benefits - B&G's powerful, dry-motor design delivers exceptional performance - 25% more efficient than competition - Permanently oil lubricated - Advanced close-coupled design increases pump life and efficiency, assures dependable seasonal start-ups and can easily handle difficult water conditions. - Tough, durable seal system features a carbon/silicon carbide seal on a stainless steel shaft sleeve for long life and rugged operation. - Double sided stainless steel neck ring for optimum efficiency The Series PL close coupled booster pumps are specifically designed for quiet operation in hydronic, radiant and geothermal heating and cooling systems. These inline permanently lubricated pumps are available in cast iron or lead-free† bronze body construction.

SKU: BELL & GOSSETT:1BL016

Product Availability: 1

$756.98

This product must be purchased in increments of 1

Qty:

i h

1BL016 BELL & GOSSETT PL-50, IRON BODY CIRCULATOR, FLANGES (LESS FLANGES), 1/6 HP, 115 VOLTS

- Model # PL-50
- 115V
- 60Hz
- 1 Phase
- 190 Watts
- 1.8 Amps
- Body Material Cast Iron
- Flow Range (GPM) 0 to 70 gpm
- Head Range (Ft) 0 to 18 Ft
- 1/6 HP
- Max Temp 225 F
- Max Pressure 150 psi (10 bar)
- 3300 RPM
- Max Flow (GPM) 70 gpm

Connection Size
- 1" / 1-1/4", 1-1/2"

Benefits
- B&G's powerful, dry-motor design delivers exceptional performance
- 25% more efficient than competition
- Permanently oil lubricated
- Advanced close-coupled design increases pump life and efficiency, assures dependable seasonal start-ups and can easily handle difficult water conditions.
- Tough, durable seal system features a carbon/silicon carbide seal on a stainless steel shaft sleeve for long life and rugged operation.
- Double sided stainless steel neck ring for optimum efficiency

The Series PL close coupled booster pumps are specifically designed for quiet operation in hydronic, radiant and geothermal heating and cooling systems. These inline permanently lubricated pumps are available in cast iron or lead-free† bronze body construction.

Products specifications

Manufacturer	Bell & Gossett
