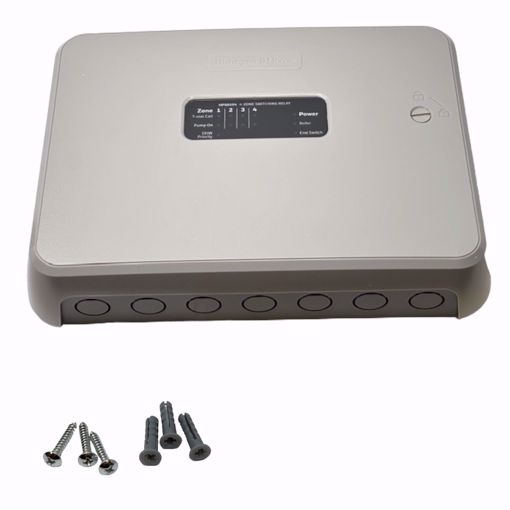

FOUR ZONE 120V PUMP ZONING PANEL

- 120V - 1 Phase - 60Hz Features - Compatible with most thermostats, including power-stealing and electromechanical models - C-terminal available for every thermostat connection - The LED panel is visible and functional whether the cover is on or off, saving troubleshooting time - The gravity centered hang hole speeds mounting, and the included DIN rail mounting system offers an additional option - Easy-tounderstand labels coded to wire colors increase installation speed and decrease the risk of errors - The covered control board reduces visual clutter and provides a surface for clear, plain language labeling Application Flexibility • Compatible with most thermostats, including power-stealing and electromechanical models • C-terminal available for every thermostat connection Easy Access • STATUS PANEL — The LED panel is visible and functional whether the cover is on or off, saving troubleshooting time • HINGED DOOR — The quarter-turn access and hinge off front cover provide both safety and quick access Installation Ease • FAMILIAR SETUP — Includes the same board layout and matching functionality as the industry standard, so no additional training is needed • FLEXIBLE MOUNTING — The gravitycentered hang hole speeds mounting, and the included DIN rail mounting system offers an additional option • COLOR-CODED WIRING — Easy-tounderstand labels coded to wire colors increase installation speed and decrease the risk of errors • SIMPLE LAYOUT COVER — The covered control board reduces visual clutter and provides a surface for clear, plain language labeling Zoning is an ideal way to help your customers maximize comfort while enjoying energy savings, but zoning for homes with a central boiler has been time consuming — until now. Honeywell’s Hydronic Zoning Panels feature simplified setup and reduced wiring for quick installation. You’ll be able to offer your hydronic customers the many benefits of zoning easier than ever before.
