BECKETT BURNER MOTOR FOR MODELS AF AFG AND NX 1/

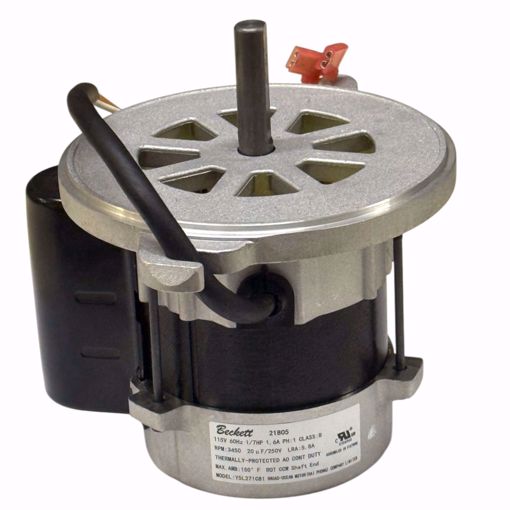

Beckett 21805U Oil Burner Motor AF, AFG and NX 1/7 HP, 3450 RPM, 120 vac, PSC (Permanent Split Capacitor), FRAME 48M
Full Specifications:
Agency Certification: UR
Bearing Type: Ball
F: 6-3/4'
Volts: 115
F/L Amps: 1.70
HP: 1/7
Hz: 60
Mounting: Flange
Frame: 48M
Phase: Single
RPM: 3450
Service Factor: 1.00
Shaft Diam.: 1/2'
Shaft Length: 1-31/32'
Thermal Protection: Auto
Type: PSC
Replaces: Beckett 2456, Beckett 2456U, Beckett 21805E, Beckett 21805B, Beckett 21805R, SA55GYKPA-5733, SA55GYKPA5733 A.O.SMITH OBK6002, Carlin 98022S, Marathon

Beckett 21805U Oil Burner Motor AF, AFG and NX 1/7 HP, 3450 RPM, 120 vac, PSC (Permanent Split Capacitor), FRAME 48M Lower amp draw cooler operation allows for fewer failures and longer life. Full Specifications: Agency Certification: UR Bearing Type: Ball F: 6-3/4" Volts: 115 F/L Amps: 1.70 HP: 1/7 Hz: 60 Mounting: Flange Frame: 48M Phase: Single RPM: 3450 Service Factor: 1.00 Shaft Diam.: 1/2" Shaft Length: 1-31/32" Thermal Protection: Auto Type: PSC Replaces: Beckett 2456, Beckett 2456U, Beckett 21805E, Beckett 21805B, Beckett 21805R, SA55GYKPA-5733, SA55GYKPA5733 A.O.SMITH OBK6002, Carlin 98022S, Marathon 0701, Emerson 3248, Sid Harvey A39-31P, A3931P, Heat Chief PSC Oil Burner Motor, Grainger 3AAC3, 21805GU, General Electric 5KH39BN5010JY, Emerson Electric S55GYSJP-5866 (2456U), S55GYSJP5866, Marathon Electric 5PL48S34S361DP, Reznor 41598, Bard 9022-013 Beckett AFG Burner Motor, Beckett AFG Oil Burner Motor, Beckett AF Burner Motor, Beckett AF Oil Burner Motor, Beckett NX Burner Motor, Beckett NX Oil Burner Motor, Beckett Burner Motor, Beckett Oil Burner Motor
