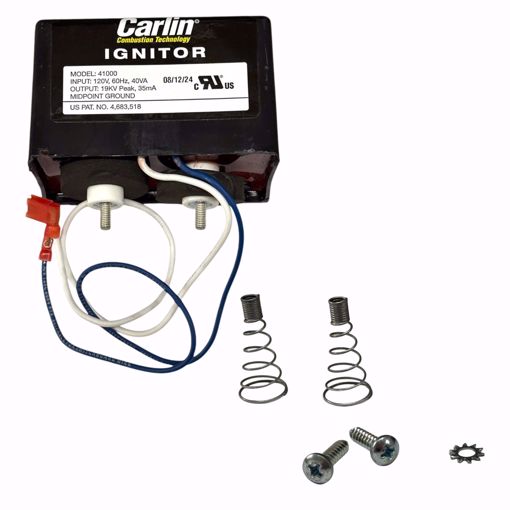

CARLIN 41000-S ELECTRONIC OIL IGNITOR
CARLIN 41000-S ELECTRONIC OIL IGNITOR
Carlin 41000 120V Electronic Oil Burner Ignitor Only (No Base Plate)
19,000-volt output for smoother
ignition.
Solid state technology yields high performance, long life and durability
Constant-duty rated
Low current draw saves electricity
Epoxy sealant provides water resistance and heat dissipation.
Consistent voltage output across a wide range of input voltages
Ignitor Model 41000
Power Input 120 VAC, 60 HZ, 40 VA
Ignitor Output 19 KV, 35 mA RMS
Secondary Grounding Midpoint
Operating Temperature Limits +32°F to +140°F
Storage Temperature Limits -40°F to +185°F
Carlin 41000S 120V Electronic Oil Burner Ignitor Only (No Base Plate) Specifications: Power Input 120 vac, 60 Hz, 40 VA Ignitor Output 19 KV, 35 mA RMS Secondary Grounding Midpoint Operating Temperature Limits + 32°F to + 140°F Storage Temperature Limits -40°F to +185°F Agencies UL Recognized (US), CSA Certified (Canada) Solid state technology yields high performance, long life and durability Constant-duty rated Low current draw saves electricity Epoxy sealant provides water resistance and heat dissipation Consistent voltage output across a wide range of input voltages Same As Clean Burn 33189, CleanBurn 33189, Carlin 41000, Embassy 60510015 Some customers have found these transformers to be a good alternative in plasma applications due the high voltage and continuous duty.
This product must be purchased in increments of 1
Carlin 41000 120V Electronic Oil Burner Ignitor Only (No Base Plate)
19,000-volt output for smoother
ignition.
Solid state technology yields high performance, long life and durability
Constant-duty rated
Low current draw saves electricity
Epoxy sealant provides water resistance and heat dissipation.
Consistent voltage output across a wide range of input voltages
Ignitor Model 41000
Power Input 120 VAC, 60 HZ, 40 VA
Ignitor Output 19 KV, 35 mA RMS
Secondary Grounding Midpoint
Operating Temperature Limits +32°F to +140°F
Storage Temperature Limits -40°F to +185°F
Carlin 41000S 120V Electronic Oil Burner Ignitor Only (No Base Plate) Specifications: Power Input 120 vac, 60 Hz, 40 VA Ignitor Output 19 KV, 35 mA RMS Secondary Grounding Midpoint Operating Temperature Limits + 32°F to + 140°F Storage Temperature Limits -40°F to +185°F Agencies UL Recognized (US), CSA Certified (Canada) Solid state technology yields high performance, long life and durability Constant-duty rated Low current draw saves electricity Epoxy sealant provides water resistance and heat dissipation Consistent voltage output across a wide range of input voltages Same As Clean Burn 33189, CleanBurn 33189, Carlin 41000, Embassy 60510015 Some customers have found these transformers to be a good alternative in plasma applications due the high voltage and continuous duty.
